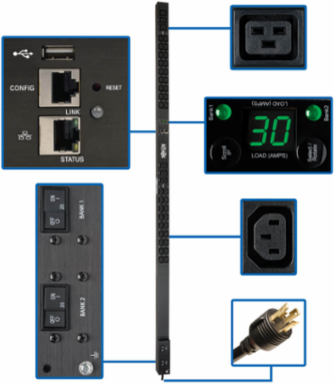

Tripp Lite PDUMNV30HV2LX 5/5.8kW Single-Phase Monitored PDU, LX Interface, 208/240V Outlets (36 C13/6 C19), L6-30P, 10 ft. Cord, 0U 1.8m/70 in. Height, TAA
Tripp Lite PDUMNV30HV2LX 5/5.8kW Single-Phase Monitored PDU, LX Interface, 208/240V Outlets (36 C13/6 C19), L6-30P, 10 ft. Cord, 0U 1.8m/70 in. Height, TAA
- MPN: PDUMNV30HV2LX
- UPC: 037332204486
- PPN: TRP-PDUMNV30HV2LX
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1468.69/ EA
Description
5/5.8kW 0U PDU distributes and monitors single-phase power in an IT or industrial environment. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.
Features
- 5/5.8kW 208/240V single-phase monitored 0U PDU

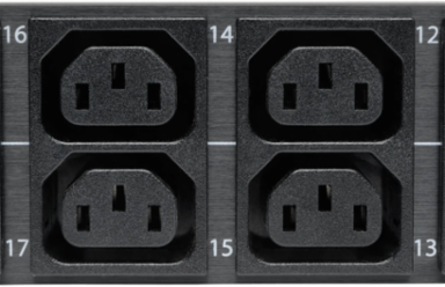

- 42 outlets—36 C13, 6 C19—with plug-lock insert sleeves
- Built-in Java-free LX Platform interface for remote access 24/7
- Digital ammeter for on-site load monitoring in real time

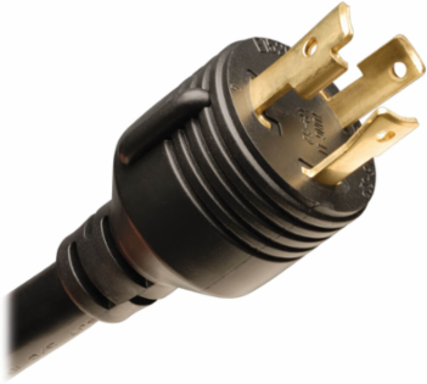

- NEMA L6-30P input with 10 ft. AC power cord
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL60950-1: 2007 (USA), CAN/CSA-C22.2 NO. 60950-1-07 (Canada), FCC Class A Part 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported

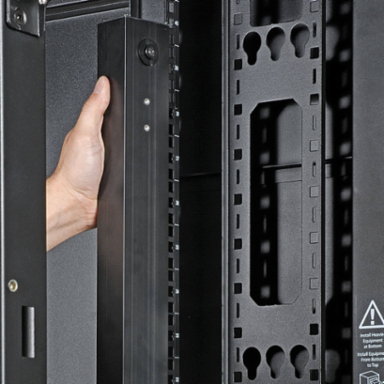

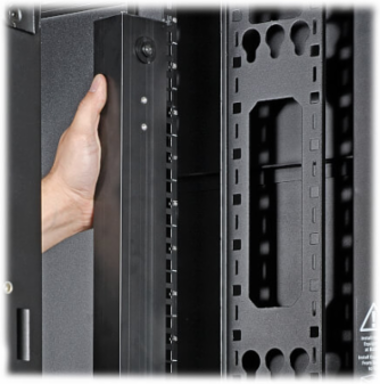

- 0U vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
- Shipping Dimensions (hwd / in.)
- 4.25 x 5.79 x 72.50
- Unit Dimensions (hwd / in.)
- 70.5 x 2.19 x 2.65
PDU Form FactorVertical (0U)
Shipping Weight (lbs.)16.50
Unit Weight (lbs.)15
User Interface, Alerts & Controls

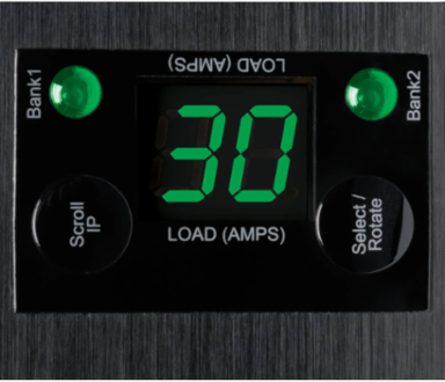

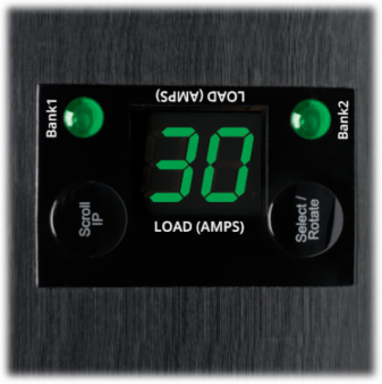

- Front Panel LCD Display
- Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top
- Switches
- Press the SCROLL IP button and release to display the configured IP address in 2 digit intervals; Press the SELECT / ROTATE button and release after one second to advance the local display power power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2; Press the SELECT / ROTATE button and release after two seconds to rotate the display 180 degrees
Front Panel LEDsFront panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-21; Bank 2 LED indicates the meter is reporting load level for outlets 22-42; Both LEDs lighted indicates the meter is reporting load level for all outlets combined
Current Measurement Accuracy (Amps)+/-2%
Input
- PDU Input Voltage
- 200; 208; 240
- Maximum Input Amps
- 30
- PDU Plug Type

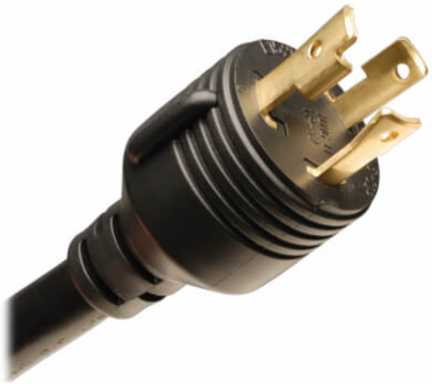

- NEMA L6-30P
- Input Cord Length (ft.)
- 10
Recommended Electrical Service30A 208/240V
Maximum Input Amps DetailsAgency de-rated to 24A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles

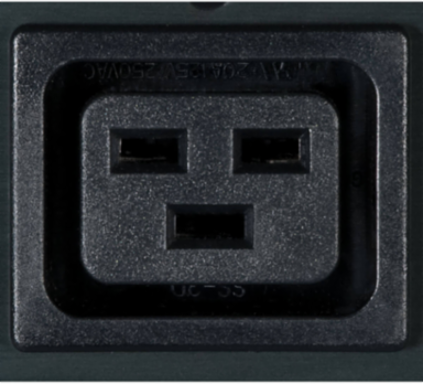

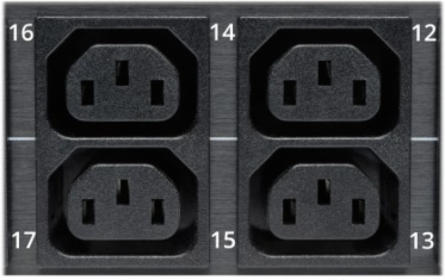

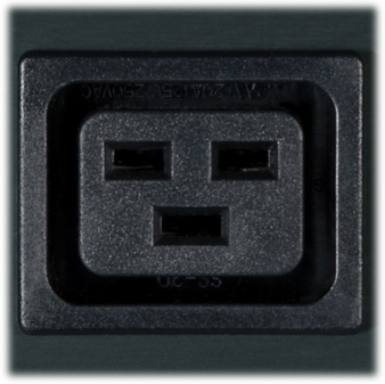

- (36) C13; (6) C19
- Overload Protection

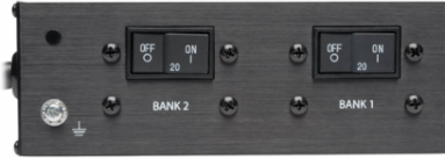

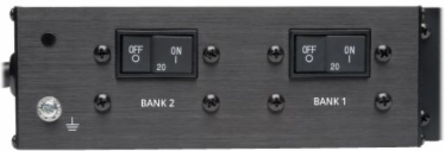

- Two 20A breakers protect 21 outlets each
Output Capacity Details5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage200; 208; 240
Customized Load Management Receptaclesn/a
Communications
- SNMP Compatibility

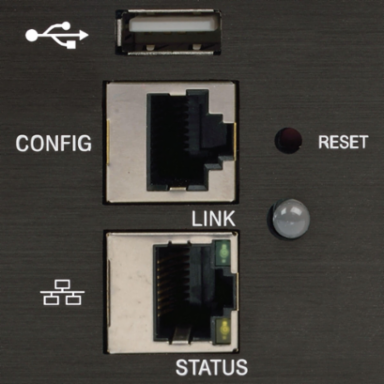

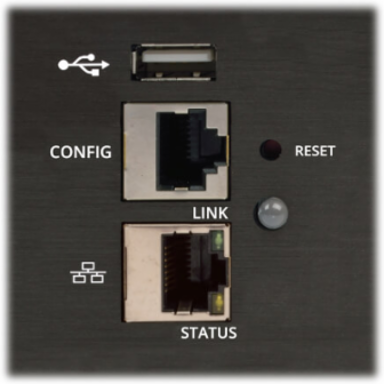

- Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +60°C (-22°F to +140°F)
Relative Humidity5-95% non-condensing
Overview
- UPC Code
- 037332204486
PDU TypeMonitored
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
