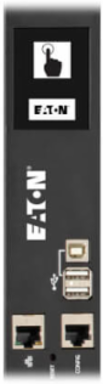

Tripp Lite PDU3EVN6L2130 8.6kW 3-Phase Monitored PDU, LX Interface, 208/120V Outlets (36 C13/6 C19/3 5-15/20R), LCD, NEMA L21-30P, 1.8m/6 ft. Cord, 0U 1.8m/70in. Height, TAA
Tripp Lite PDU3EVN6L2130 8.6kW 3-Phase Monitored PDU, LX Interface, 208/120V Outlets (36 C13/6 C19/3 5-15/20R), LCD, NEMA L21-30P, 1.8m/6 ft. Cord, 0U 1.8m/70in. Height, TAA
- MPN: PDU3EVN6L2130
- UPC: 037332195296
- PPN: TRP-PDU3EVN6L2130
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2476.23/ EA
Description
8.6kW 3-phase PDU with multifunction touchscreen LCD distributes and monitors AC power in an IT or industrial environment. Built-in network interface remotely monitors load levels to prevent overloads that cause downtime.
Features
- 8.6kW 208/120V 3-phase monitored 0U PDU
- 45 outlets—36 C13, 6 C19, 3 5-15/20R—with plug-lock inserts
- Built-in LX Platform interface for remote access 24/7
- NEMA L21-30P input with 6 ft. AC power cord
- Touchscreen LCD with mobile access option via QR code
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL60950-1 (USA) CAN/CSA 60950-1 (Canada), NOM (Mexico), FCC Class A Part 15 (Emissions), ROHS, TAA Compliant
Physical
- Form Factors Supported

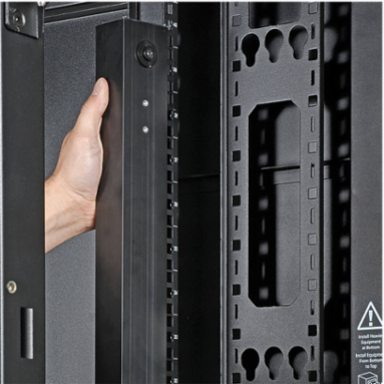

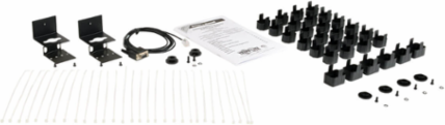

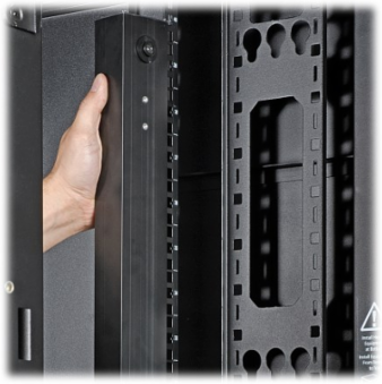

- Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks
- PDU Form Factor
- Vertical (0U)
- Shipping Weight (lbs.)
- 17.75
- Unit Weight (lbs.)
- 13.5
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)7.09 x 9.65 x 75.87
Unit Dimensions (hwd / in.)70 x 2.17 x 2.52
User Interface, Alerts & Controls
- Reported Load Segments

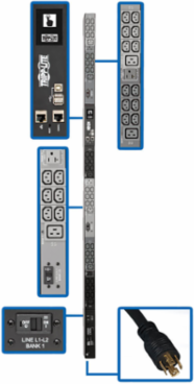

- Supports monitoring of input current per phase (L1, L2, L3) and output current for each output load bank (B1-B6); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black C13/C19 outlets (B1); L2-L3 feeds dark-gray C13/C19 outlets (B2); L3-L1 feeds light-gray C13/C19 outlets (B3); L1-N feeds black 5-20R outlet (B4); L2-N feeds dark-gray 5-20R outlet (B5); L3-N feeds light-gray 5-20R outlet (B6)
- Current Measurement Accuracy (Amps)
- +/-1%
- Power Measurement Accuracy (Watts)
- +/-1%

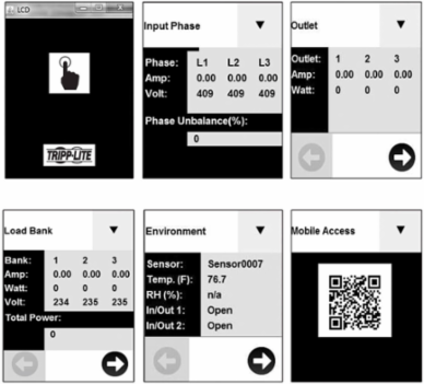

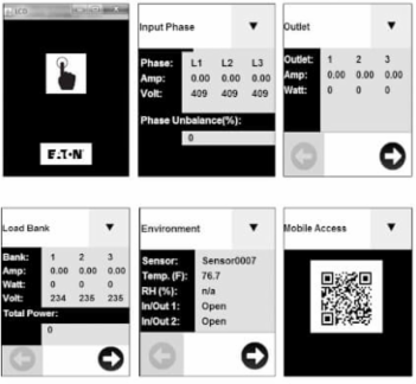

Front Panel LCD DisplayTouchscreen LCD reports NETWORK DATA (IP address, Subnet Mask, Gateway, MAC Address, Device Name, Model, Serial Number), INPUT PHASE DATA (Amperage, Wattage, Voltage per phase, plus Unbalance percentage), LOAD BANK DATA (Amperage, Wattage, Voltage per load bank, plus total PDU output in watts), CONFIGURATION DATA (Listing of current configuration settings), ENVIRONMENTAL DATA (Reports data and status of E2 sensor modules; Sensor options are available for temperature and humidity, plus input and output dry contacts), MOBILE ACCESS (Generates a unique QR code to view reported PDU details on a mobile device)
Voltage Measurement Accuracy (Volts)+/-1%
Input
- PDU Input Voltage
- 208
- Maximum Input Amps
- 24
- Input Phase
- 3-Phase
Recommended Electrical Service30A 208V with L21-30R outlet

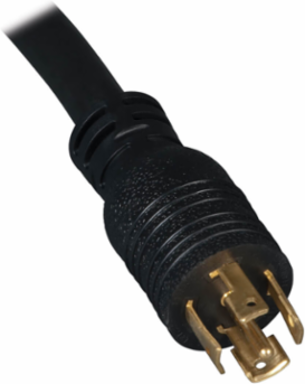

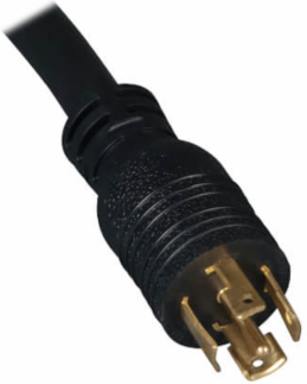

PDU Plug TypeNEMA L21-30P
Input Cord Length (ft.)6
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Capacity Details
- 8.6kW (208V) total capacity; 13.9A max per breakered outlet bank; 12A max per C13 outlet
- Output Nominal Voltage
- 120; 208
Output Receptacle Details5-15/20R outlets provide 120V output; C13 and C19 outlets provide 208V output
Output Receptacles(3) 5-15/20R; (36) C13; (6) C19
Overload Protection3 20A circuit breakers, one per output load bank
Communications
- SNMP Compatibility
- Pre-installed LX platform network interface
Environmental
- Operating Temperature Range
- 32 to 122F (0C to 50C)
- Relative Humidity
- 5 to 95% non-condensing
Storage Temperature Range-30°C to +60°C (-22°F to +140°F)
Overview
- UPC Code
- 037332195296
PDU TypeMonitored
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
