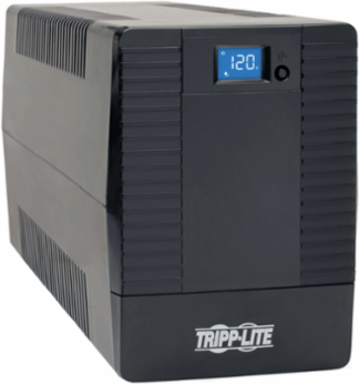

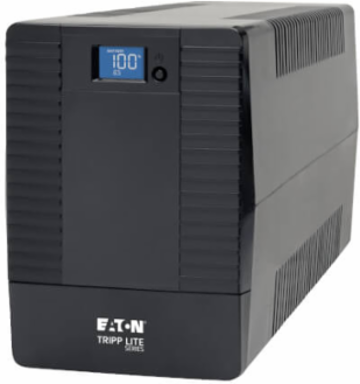

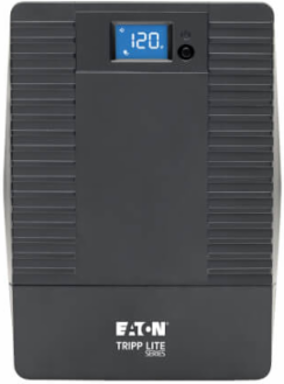

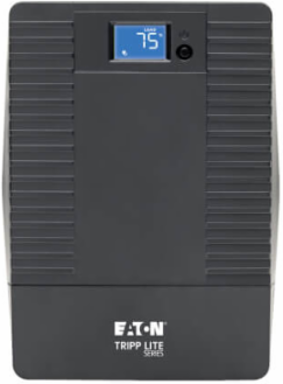

Tripp Lite OMNIVS1200LCD 1200VA 600W Line-Interactive UPS with 8 Outlets - AVR, 120V, 50/60 Hz, LCD, USB, Tower
Tripp Lite OMNIVS1200LCD 1200VA 600W Line-Interactive UPS with 8 Outlets - AVR, 120V, 50/60 Hz, LCD, USB, Tower
- MPN: OMNIVS1200LCD
- UPC: 037332214089
- PPN: TRP-OMNIVS1200LCD
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$338.43/ EA
Description
1200VA 600W Line-Interactive UPS with 8 Outlets - AVR, 120V, 50/60 Hz, LCD, USB, Tower
Features
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Battery backup supplies power during outages; AVR corrects low and high voltages
- 8 NEMA 5-15R outlets provide power to PC, home theater and digital signage equipment
- Easy-to-read LCD touchscreen gives valuable voltage, load and battery data
- High >95% efficiency with low BTU ratings saves power and lowers energy costs
- 3-year limited warranty
- $200,000 Ultimate Lifetime Insurance
- 1200VA/600W/120V Battery Backup for PCs, Home Theater or Digital Signage
- Allows Time to Back Up Critical Files During a Blackout
- Restarts Automatically After a Long Outage

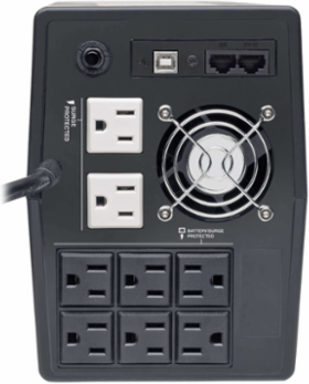

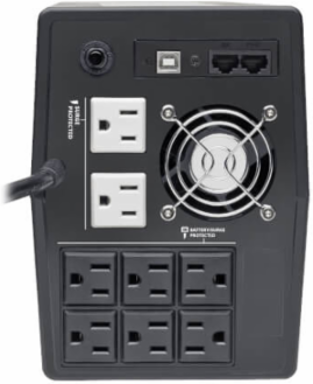

- Connects Your Equipment to 8 Protected NEMA 5-15R Outlets
- Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
- Surge Suppression Protects AC and Tel/DSL/Ethernet Lines
- Combats Line Noise That Can Harm Equipment
- Easy-to-Read LCD Touchscreen Reports Real-Time UPS and Power Status
- HID-Compliant USB Port Allows for Unattended, Graceful Shutdowns
- Tower Form Factor is Easy to Place in Your Workspace or Media Center
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 316
- UPS Dataline Suppression
- 1 line TEL/DSL or Ethernet
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 2 min. (600w)
- DC System Voltage (VDC)
- 12

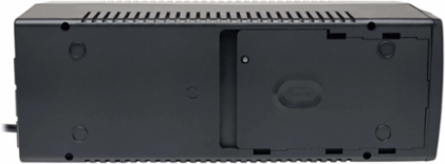

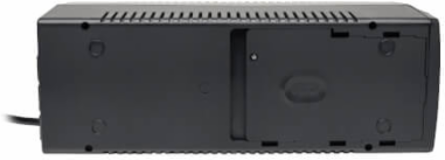

- Battery Access
- Battery access door
- Expandable Runtime
- No
Half Load Runtime (min.)12 min. (300w)
Battery Recharge Rate (Included Batteries)8 hours (10% to 90%)
Battery Replacement DescriptionReplaceable internal batteries (see manual)
Certifications
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
UPS Certification DetailsUL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; FCC CLASS A; FCC Part 68 Approved (#5WSWP01B005); Industry Canada Approved (#3449A-005, REN0.1B); RETIE (Colombia)
Physical
- Installation Form Factors Supported with Included Accessories
- Tower
- Primary UPS Depth (mm)
- 305
- Primary UPS Width (mm)
- 140
- UPS Housing Material
- ABS
- UPS Power Module Weight (kg)
- 8.71
Primary Form FactorDesktop
Primary UPS Height (mm)191
Shipping Dimensions (hwd / in.)11.70 x 9.30 x 19.50
UPS Power Module Dimensions (hwd, in.)7.5 x 5.5 x 12
UPS Power Module Weight (lbs.)19.2
User Interface, Alerts & Controls

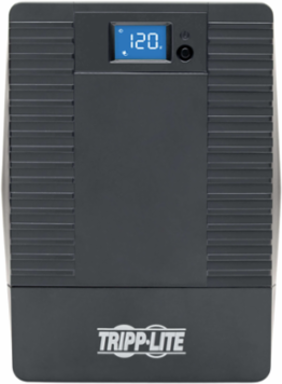

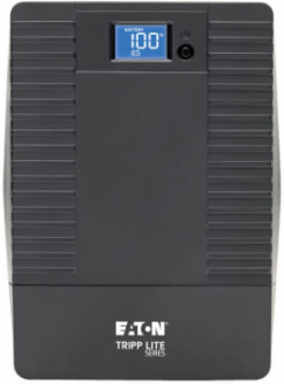

- Front Panel LCD Display
- Touchscreen LCD reports input voltage, output voltage, load percentage, battery charge percentage and overload status
- Audible Alarm
- UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions
SwitchesPower off/on switch
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
- Undervoltage Correction
- Input voltages between 89 and 108 are boosted by 18%
Overvoltage CorrectionInput voltages between 128 and 149 are reduced by 15%
Input
- Rated input current (Maximum Load)
- 12A
- UPS Input Connection Type
- 5-15P
- UPS Input Cord Length (ft.)
- 5
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported120V AC
Input Circuit Breakers12A
Recommended Electrical Service15A 120V
Output
- Output Volt Amp Capacity (VA)
- 1200
- Output Watt Capacity (Watts)
- 600
- Frequency Compatibility
- 50 / 60 Hz
- Output Voltage Regulation (Battery Mode)
- 120V (±10%)
- Hot-Swap PDU options
- PDUB15 (2U / 8 5-15R outlets)
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Output Receptacles
- (8) 5-15R
Output kVA Capacity (kVA)1.2
Nominal Voltage Details120v nominal output in battery mode
Output Voltage Regulation (Line Mode)120V (+6%/-12%)
UPS Output Receptacles (Surge Suppression Only)6 UPS outlets, 2 surge-only outlets
Output AC Waveform (AC Mode)Pure sine wave
Nominal Output Voltage(s) Supported110V; 115V; 120V
Individually Controllable Load BanksNo
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications CableUSB interface cable included
Communications InterfaceUSB (HID enabled)
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 90%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- >95%
Storage Temperature Range+5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius
AC Mode BTU / Hr. (Full Load)25.3
Overview
- UPC Code
- 037332214089
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS
High Availability UPS FeaturesBattery Independent Restart
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$200,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 6 milliseconds typical (10 milliseconds max)
- High Voltage Transfer to Battery Power (Setpoint)
- 145
Low Voltage Transfer to Battery Power (Setpoint)89
