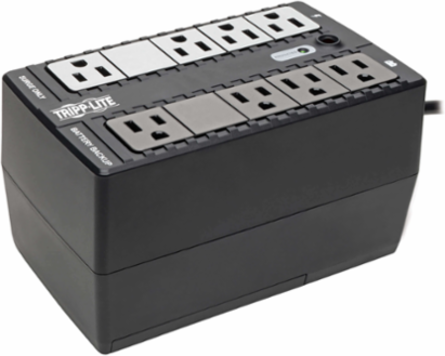

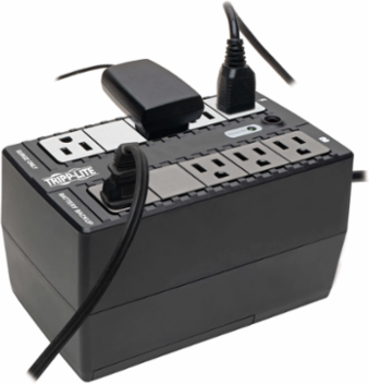

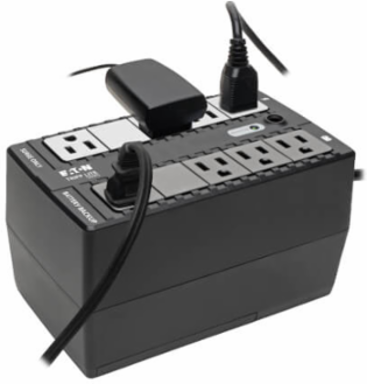

Tripp Lite BC450 Standby UPS 450VA 255W - 8 5-15R Outlets, 120V, 50/60 Hz, 5-15P Plug, Desktop/Wall Mount
Tripp Lite BC450 Standby UPS 450VA 255W - 8 5-15R Outlets, 120V, 50/60 Hz, 5-15P Plug, Desktop/Wall Mount
- MPN: BC450
- UPC: 037332238283
- PPN: TRP-BC450
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$138.33/ EA
Description
Standby UPS 450VA 255W - 8 5-15R Outlets, 120V, 50/60 Hz, 5-15P Plug, Desktop/Wall Mount
Features
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Battery backup allows time to save files and safely shut down during blackouts
- Alarm remains silent in battery mode; sounds to report low battery and overloads
- High >98% efficiency reduces BTU emissions, saves power and lowers energy costs
- Battery-independent restart ensures automatic UPS power-up after power outages
- 2-year limited warranty
- $100,000 Ultimate Lifetime Insurance
- Compact Desktop 450VA/255W Battery Backup for PCs, Home Theater and Digital Signage
- Allows Time to Back Up Critical Files During a Blackout
- Automatically Turns Back On After Power Is Restored

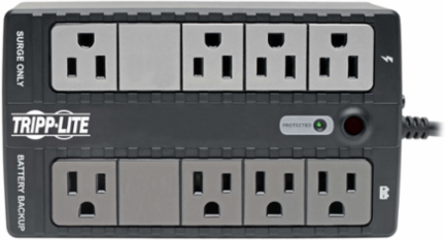

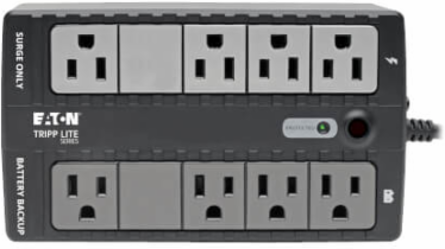

- 8 NEMA 5-15R Outlets Protect Your Computer and Other Connected Components
- 316 Joules Fight Back Against Unexpected Power Surges
- Combats Electromagnetic Interference That Can Harm Equipment
- Home-Friendly Alarm and Diagnostic LED Report Real-Time Status
- High-Efficiency Operation Helps You Save Energy and Cut Costs
- Compact Housing for Convenient Installation Almost Anywhere
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 316
- EMI / RFI AC Noise Suppression
- Yes
UPS AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 1.5 min. (255w)
- DC System Voltage (VDC)
- 12
- Battery Access
- Battery access door
- Expandable Runtime
- No
Half Load Runtime (min.)6.9 min. (127.5w)
Battery Recharge Rate (Included Batteries)6.5 hours (10% to 90%)
Battery Replacement DescriptionReplaceable internal batteries (see manual)
Certifications
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
UPS Certification DetailsUL1778:2014 (5th Ed); CAN/CSA-C22.2 No. 107.3-14 (3rd Ed); CLASS B; 47 CFR FCC PART 15 SUBPART B:2017; ICES-003:2017; RETIE (Colombia)
Physical

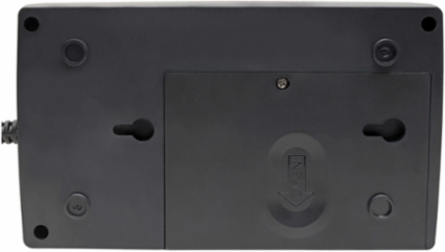

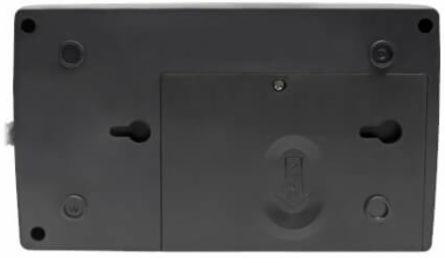

- Installation Form Factors Supported with Included Accessories
- Tower; Ultra-compact desktop; Wallmount
- Primary UPS Depth (mm)
- 185
- Primary UPS Width (mm)
- 110
- UPS Housing Material
- ABS
- UPS Power Module Weight (kg)
- 1.80
Primary Form FactorDesktop
Primary UPS Height (mm)105
Shipping Dimensions (hwd / in.)7.36 x 5.67 x 10.86
UPS Power Module Dimensions (hwd, in.)4.13 x 4.33 x 7.28
UPS Power Module Weight (lbs.)3.96
User Interface, Alerts & Controls
- Switches
- Power off/on switch
- LED Indicators
- 1 Status LED reports operating mode and fault status
Audible AlarmUPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions
Input
- Rated input current (Maximum Load)
- 6A
- UPS Input Connection Type
- 5-15P
- UPS Input Cord Length (ft.)
- 5
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported120V AC
Input Circuit Breakers7A
Recommended Electrical Service15A 120V
Output
- Output Volt Amp Capacity (VA)
- 450
- Nominal Voltage Details
- 120v nominal output in battery mode
- Output Voltage Regulation (Line Mode)
- 120V (±20%)
- UPS Output Receptacles (Surge Suppression Only)
- 4 UPS outlets, 4 surge-only outlets
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Output Receptacles
- (8) 5-15R
Output Watt Capacity (Watts)255
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation (Battery Mode)120V (±10%)
Output AC Waveform (AC Mode)Pure sine wave
Nominal Output Voltage(s) Supported110V; 115V; 120V
Individually Controllable Load BanksNo
Communications
- Communications Interface
- None
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 90%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- >98%
Storage Temperature Range+5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius
AC Mode BTU / Hr. (Full Load)13.1
Overview
- UPC Code
- 037332238283
UPS TypeStandby
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS
High Availability UPS FeaturesBattery Independent Restart
Warranty
- Product Warranty Period (U.S. & Canada)
- 2-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$100,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 6 milliseconds typical (10 milliseconds max)
- High Voltage Transfer to Battery Power (Setpoint)
- 145
Low Voltage Transfer to Battery Power (Setpoint)95
