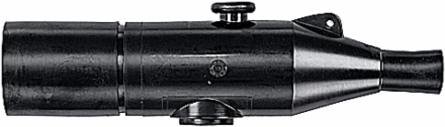

Thomas & Betts K151SR-A0250-SG3 Deadbreak Straight Receptacle
- MPN: K151SR-A0250-SG3
- UPC: 075114129978
- PPN: T-B-K151SR-A0250-SG3
CAD
$604.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 15/25kV, Deadbreak Elbow, Straight Receptacle, Bails are required but not included, order separately. Cable Insulation Diameter 0.575 inch to 0.740 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 2/0 or Solid 3/0 or mmSquared 67.43. 200ECS-G3 Jacket Seal and Grounding Kit Included.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for ground wire connection. Wide cable range with minimum number of sizes. No Test Point.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43.
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
- Consist Of
- Straight Receptacle Housing, Receptacle Pin Connector, Tube Lubricant, Installation Instruction and Crimp Chart
IGCC4586 Electrical connector assembly
TypeDeadbreak Straight Receptacle
ApplicationDesigned to connect a cable to another cable or apparatus.
Size2.74 inch wide x 9.54 inches long
MaterialHousing - EPDM Rubber
Voltage Rating15/25kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Shielded, Fully Submersible
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)8.5x19x12.5
