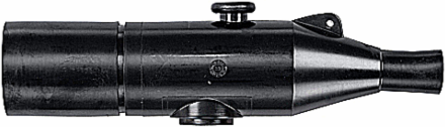

Thomas & Betts K151SR-A0270-SG3 Deadbreak Straight Receptacle
- MPN: K151SR-A0270-SG3
- UPC: 075114339278
- PPN: T-B-K151SR-A0270-SG3
CAD
$566.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 kV, 200 Amp, Deadbreak Elbow with SG3 Sealing Kit. Cable Insulation Diameter 9.575 to 0.740 inches (14.605-18.796mm). Aluminum Conductor Material, Conductor Code 270 - 4/0 Stranded/Compressed or 250 Solid/Compact. SG3 - Cold Shrinkable Seal with Copper Braid and Constant Force Spring.
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)8.5x19x12.5
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for ground wire connection. Wide cable range with minimum number of sizes. No Test Point. SG3 Sealing Kit
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
- Consist Of
- Straight Receptacle Housing, Receptacle Pin Connector, Tube Lubricant, Installation Instruction and Crimp Chart
IGCC4586 Electrical connector assembly
TypeDeadbreak Straight Receptacle
ApplicationDesigned to connect a cable to another cable or apparatus.
Size2.74 inch wide x 9.54 inches long
MaterialHousing - EPDM Rubber
Voltage Rating15/25kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Shielded, Fully Submersible
