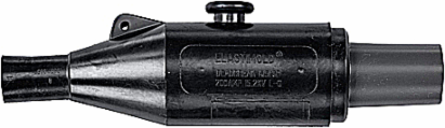

Thomas & Betts K151SP-A0250-SG3 Deadbreak Straight Plug
- MPN: K151SP-A0250-SG3
- UPC: 075114126250
- PPN: T-B-K151SP-A0250-SG3
CAD
$647.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 15/25kV, Deadbreak Elbow, Straight Plug, Bails are required but not included, order separately. Cable Insulation Diameter 0.575 inch to 0.740 inch. Includes an aluminum compression lug. Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43. 200ECS-G3 Jacket Seal and Grounding Kit Included.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for ground wire connection. Wide cable range with minimum number of sizes. No Test Point.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43.
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
- Consist Of
- Straight Receptacle Housing, Receptacle Pin Connector, Tube Lubricant, Installation Instruction and Crimp Chart
IGCC4586 Electrical connector assembly
TypeDeadbreak Straight Plug
ApplicationDesigned to Terminate UD Cable having Concentric Neutral and Extruded instalation shielding.
Size2.55 inch wide x 8.81 inches long
MaterialHousing - EPDM Rubber
Voltage Rating15/25kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Shielded, Fully Submersible
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)8.5x19x12.5
