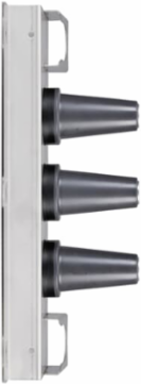

Thomas & Betts 750-J3 35KV 600A DEADBRK 3PT JUNCTION
- MPN: 750-J3
- UPC: 783786632909
- PPN: T-B-750-J3
- UNSPSC: 26121630
CAD
$2093.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kV 600 Series Deadbreak 3-point Junction, includes Rubber Junction, Stainless Steel U-Straps and Back Plate
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass.
- Effective Date
- 19980108
- Product Name
- electrical connector,>1000v"
- Size
- 6.85 inches (173.6 mm) Tall, 6.75 inch (171.5 mm) Wide, 15.00 inch (381.0 mm) Long, 4.00 inch (101.6 mm) Center Junction to Center Junction. 5.50 inch (139.7 mm) Center Slot to Center Slot on Short Side, 12.00 inch (304.8 mm) on Long Side, and 1.50 inch (38.1 mm) Center Slot from Edge on Long Side.
- Standards
- ANSI/IEEE Standard 386
Brand / LabelElastimold
MaterialStainless Steel Mounting Bracket, EPDM Rubber Junction.
Product TypeJunction
Special Functions35kV, 600 Amp Deadbreak 3-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors. Stainless Steel Mounting Bracket.
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
