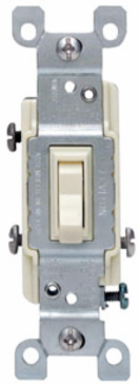

Leviton 1453-WCP 15 Amp 3-Way Toggle Switch, Non-Grounding, White, 120 Volt
Leviton 1453-WCP 15 Amp 3-Way Toggle Switch, Non-Grounding, White, 120 Volt
- MPN: 1453-WCP
- UPC: 078477140208
- PPN: LEV-1453-WCP
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$1.93/ EA
Description
15 Amp, 120 Volt, Toggle Framed 3-Way AC Quiet Switch, Residential Grade, Non-Grounding, Quickwire Push-In & Side Wired, - White Made in USA
Features
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
- Tried-and-true toggle designs, Leviton Residential Grade AC Quiet Switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Leviton’s traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.
Specifications
- Amperage
- 15 A
- Horsepower Rating
- 1/2 HP-120V
- Type
- Toggle Switch
- Termination
- Quickwire Push-In & Side
- Strap Material
- Steel
- Frame
- Framed
- Color
- White
Voltage120 VAC
Number of Poles3
GroundingNon-Grounding
Terminal AccommodationSide wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
MaterialThermoplastic
Standards and CertificationsUL/CSA
Country of OriginPlease Contact Customer Service
