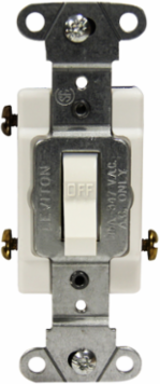

Leviton 18203-CW 3-Way Toggle Switch, 15 Amp, 347 Volt AC, Side Wire, Commercial Grade
- MPN: 18203-CW
- PPN: LEV-18203-CW
CAD
$21.27
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3-Way Toggle Switch, 15 Amp, 347 Volt AC, Side Wire, Commercial Grade
Documentation & Downloads
Specifications
Standards and Certifications
- Warranty
- 10-Year Limited
- CSA C22.2 No. 111
- File #152105
- UL Fed Spec WS896E
- File #E7458
ANSIC-73
UL StandardUL20
Material Specifications
- Feature 3
- Framed
- Terminal Screws
- Brass 8-32
- Device Type
- Toggle Switch
- Function
- 3-Way
- Strap Material
- Steel
- Max. Amperage
- 12 Amp
- Body Material
- Thermoplastic
- Amperage
- 15 A
- Cover Material
- Thermoplastic
- Grade
- Commercial Specification Grade
- Voltage
- 347 VAC
- Contact Material
- Silver Alloy
Feature 4Canadian
FeatureCanadian - Framed
GroundingGrounding
Standards and CertificationsUL/CSA
HP Rating1/2HP-120V 2HP-240V-277V-347V
Warranty10-Year Limited
TerminationSide Wire
ColorWhite
Base MaterialThermoplastic
TogglePolycarbonate
Actuator MaterialThermoplastic
Mechanical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Endurance
- 50,000 cycles minimum
- Voltage
- 347 VAC
- Terminal Accom.
- 14-#10 AWG back wired; #14-#12 AWG side wired
- Terminal ID
- Brass-Hot (If Applicable) Black-Hot White-Neutral Green-Gnd
Product IDRatings are permanently marked on device
Temperature RiseMaximum 30 degrees C rise
Torque Range12-14 inch pounds
TerminationSide Wire
Overload UL20 Test100 cycles of OL at 4.8 times rated current
Product Features
- Function
- 3-Way
- Product ID
- Ratings are permanently marked on device
- Torque Range
- 12-14 inch pounds
- Color
- White
- Grade
- Commercial Specification Grade
- Voltage
- 347 VAC
- Terminal ID
- Brass-Hot (If Applicable) Black-Hot White-Neutral Green-Gnd
Feature 3Framed
Terminal Accom.14-#10 AWG back wired; #14-#12 AWG side wired
Feature 4Canadian
Country Of OriginPlease Contact Customer Service.
Device TypeToggle Switch
TerminationSide Wire
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
- Cover Material
- Thermoplastic
- Toggle
- Polycarbonate
- Operating Temperature
- -40°C to 65°C
Terminal ScrewsBrass 8-32
Strap MaterialSteel
Base MaterialThermoplastic
Contact MaterialSilver Alloy
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Endurance
- 50,000 cycles minimum
- Overload UL20 Test
- 100 cycles of OL at 4.8 times rated current
FlammabilityRated V-2 per UL 94
Temperature RiseMaximum 30 degrees C rise
Operating Temperature-40°C to 65°C
