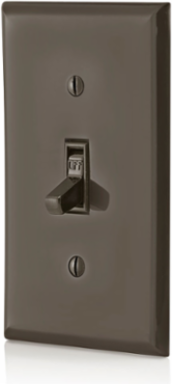

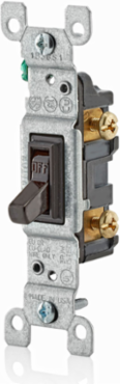

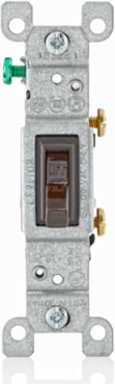

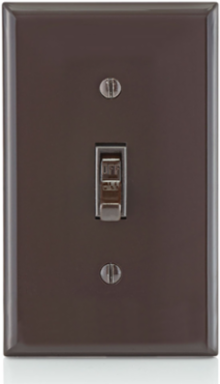

Leviton 1451-2 15 Amp Single-Pole Toggle Switch, Grounding, 120 Volt, Thermoplastic
- MPN: 1451-2
- UPC: 078477173701
- PPN: LEV-1451-2
CAD
$1.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 120 Volt, Toggle Framed Single-Pole AC Quiet Switch, Residential Grade, Grounding, Quickwire Push-In & Side Wired - Brown
Features
- Faster installation with combination of side wiring and Quickwire push-in wiring
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Large head triple-drive combination screws (Standard, Phillips, Robertson) for fast wiring installation
- Impact-resistant, durable thermoplastic toggle and frame
- Backed by a Limited Two-Year Warranty
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
- Tried-and-true toggle designs, Leviton Residential Grade AC Quiet Switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Leviton’s traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| RoHS Compliant | False |
|---|
Product Features
| Actuator Material | Thermoplastic |
|---|---|
| Body Material | Thermoplastic |
| Feature | Framed |
| HP Rating | 1/2HP-120V |
| Pole | 1 |
| Strap Material | Steel |
| Termination | Quickwire Push-In & Side |
| Type | Toggle Switch |
| Warranty | 2-Year Limited |
| Amperage | 15 A |
|---|---|
| Color | Brown |
| Grounding | Grounding |
| Max. Amperage | 12 Amp |
| Standards and Certifications | UL/CSA |
| Terminal Accom. | Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only |
| Torque Range | 14 – 18 in.-lbs |
| Voltage | 120 VAC |
