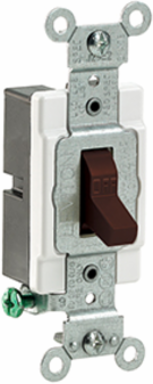

Leviton CS115-2 15 Amp Single-Pole Toggle Switch, 120/277V, Quiet Commercial Spec Grade, Brown
- MPN: CS115-2
- UPC: 078477815526
- PPN: LEV-CS115-2
CAD
$3.79
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired - Brown
Features
- Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- AC Horsepower Rating
- 1/2 HP-120V, 2 HP-240V-277V
- Temperature Rise
- Maximum 30 degrees C rise
- Function
- Single-Pole
- Termination
- Side Wire
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Material
- Thermoplastic (Actuator, Body), PBT (Base), Nylon (Cover), Steel (Strap, Terminal Screws)
- Toggle
- Polycarbonate
- Compliance
- ANSI C-73, CSA C22.2 No. 111, NEMA WD-1 & WD-6, NOM 057, UL Fed Spec WS896E, UL 20
- Color
- Brown
Max Amperage12 A
Voltage120/277 VAC
Operating Temperature-40°C to 65°C
Device TypeToggle Switch
Terminal Accommodation14-12 AWG
Screw Terminal Torque14-18 in-lbs
ContactsSilver-Cadmium .031 Thick
FlammabilityRated V-2 per UL94
Country of OriginUnited States
GradeCommercial Specification Grade
