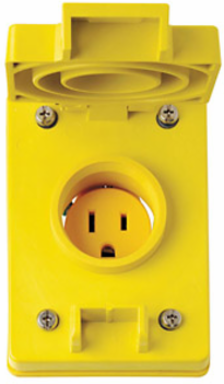

Leviton 60W47 Wetguard Watertight Flip Lid Receptacle, 15A 125V, Nickel-Plated Brass, Yellow
- MPN: 60W47
- UPC: 078477066256
- PPN: LEV-60W47
CAD
$148.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Flip Lid with Receptacle, Narrow Body Single Receptacle, Straight Blade, Industrial Grade, Grounding, Wetguard Flip Lid, Side Wired, Nickel-Plated Brass Strap, - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
- ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
- MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
- DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
- Warranty
- Limited Lifetime Warranty
CSA C22.2 No. 42File LR-406
NOM057
UL Fed Spec WC-596File E13399
Material Specifications
- Assembly Screws
- Stainless Steel 300
- Body Material
- Thermoplastic Nylon
- Clamp Nuts
- Nickel-Plated Brass
- Compression Nut, Strain Relief
- Nylon
- Grounding Screw
- Nickel-Plated Brass 8-32
- Terminal Screws
- Nickel-Plated Brass
- Wire Module
- Thermoplastic
Blades/ContactsNickel-Plated Brass
BushingSantoprene TPV
ColorYellow
Face MaterialThermoplastic Nylon
Line ContactsNickel-Plated Brass Triple-Wipe
UL498File E13399
YokeNickel-Plated Brass
Mechanical Specifications
- Cord Range
- .375 - .655
- Terminal Accom.
- 18-10 AWG
Product IDRatings and NEMA I.D. permanently marked on device
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Product Features
- Brand
- Wetguard
- Strap Material
- Nickel-Plated Brass
Device TypeStraight Blade Outlet
TerminationBack
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
