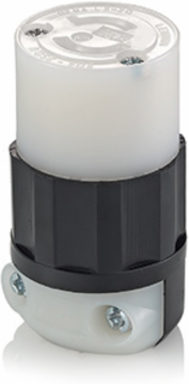

Leviton 7506-C 15 Amp 125 Volt NEMA L1-15P Locking Connector, Nylon Body, Non-Grounding
- MPN: 7506-C
- UPC: 078477515631
- PPN: LEV-7506-C
CAD
$60.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp 125 Volt NEMA L1-15P Locking Connector, Nylon Body, Non-Grounding
Documentation & Downloads
Specifications
Standards and Certifications
- Warranty
- Limited Lifetime Warranty
- NOM Certified
- 057
- UL Fed Spec WC-596
- File E13393
CSA C22.2 No. 42File LR-406
ANSIC-73
NEMAWD-6
Material Specifications
- Wire Module
- Nylon
- Clamp Insert
- Nylon
- Back Cover
- Thermoplastic
- Body Material
- Impact Modified Nylon
- Assembly Screws
- Steel, Zinc Plated
ColorBlack-White
Blades/ContactsSolid Brass
Terminal ScrewsBrass
Cord-ClampNylon
Mechanical Specifications
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 18-10 AWG
Cord Range.240 - .700
Wire Gauge18-10 AWG
Product Features
- Color
- Black-White
- Country Of Origin
- United States
BrandBlack and White
NEMAL1-15R
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated HB or better UL94
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Voltage
- 125 VAC
Wire2
Current InterruptingCertified for current interrupting at full rated current
Pole2
GroundingNon-Grounding
AC Horsepower Ratings
- Horsepower Rating
- 1/2 HP
