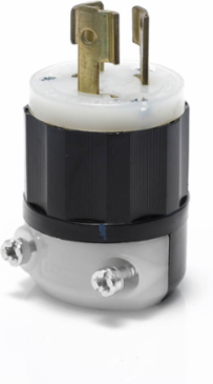

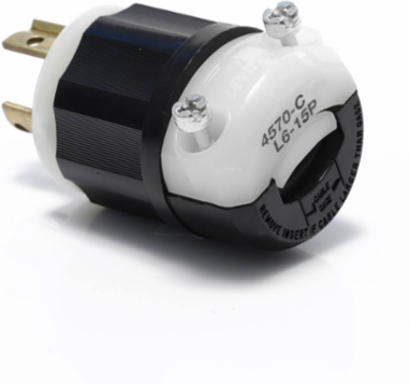

Leviton 4570-C Locking Plug 15 Amp 250 Volt NEMA L6-15P Black & White
- MPN: 4570-C
- UPC: 078477795675
- PPN: LEV-4570-C
CAD
$21.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

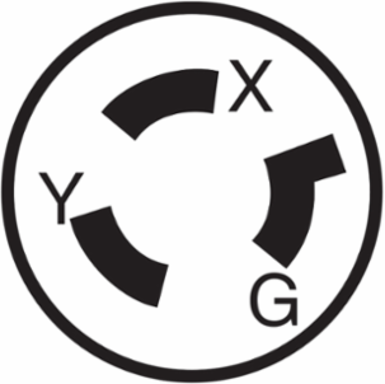

15 Amp, 250 Volt, NEMA L6-15P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Horsepower Rating
- 1.5 HP
- Torque Range
- 10-14 in-lbs
- Wire
- 3
- Terminal Accommodation
- 18-10 AWG
- Cord Range
- 0.230 to 0.685 in
- Back Cover
- Thermoplastic
- Wire Module
- Nylon
- Blades/Contacts
- Solid Brass
- Cord-Clamp
- Nylon
- Dielectric Voltage
- Withstands 2000 V per UL498
- UL Fed Spec WC-596
- File E13393
- ANSI
- C-73
- RoHS Compliance
- Compliant
- Environment
- Dry
- Brand
- Black and White
Voltage250 VAC
Current InterruptingCertified for full rated current
Pole2
Wire Gauge18-10 AWG
GroundingYes
MaterialImpact Modified Nylon, Solid Brass, Nylon, Steel Zinc Plated
Assembly ScrewsSteel Zinc Plated
Body MaterialImpact Modified Nylon
Clamp InsertNylon
Flammability RatingUL94 HB or better
CSA C22.2 No. 42File LR-406
NEMAWD-6
NOM Certified057
Operating Temperature-40°C to 60°C
Country of OriginMexico
