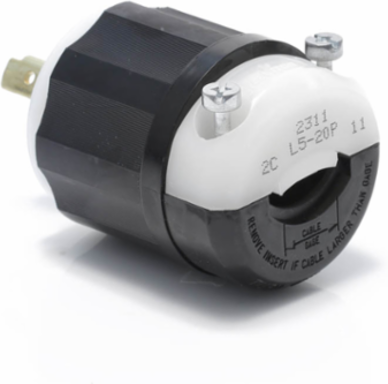

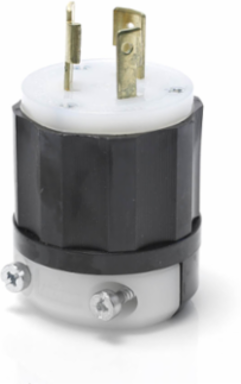

Leviton 2311 Extra-Heavy Duty Locking Plug 20 Amp 125 Volt NEMA L5-20P
Leviton 2311 Extra-Heavy Duty Locking Plug 20 Amp 125 Volt NEMA L5-20P
- MPN: 2311
- UPC: 078477800942
- PPN: LEV-2311
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$14.05/ EA
Description

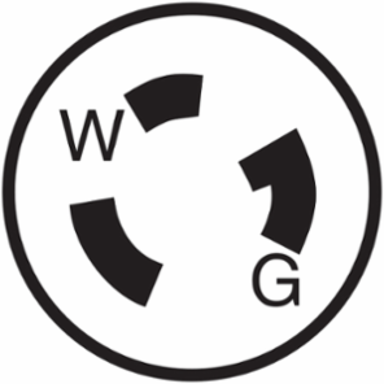

20 Amp, 125 Volt, NEMA L5-20P, 2P, 3W, Locking Plug, Extra Heavy Duty, Industrial Grade, Grounding - Black/White
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes (.245"-.700")
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive limited lifetime warranty
- Ideal for motor loads, such as shop vacs and pool pumps, and generators
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13393
- Warranty
- Limited Lifetime Warranty
CSA C22.2 No. 42File LR-406
NOM057
UL498File E13393
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Blades/Contacts
- Solid Brass
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Wire Module
- Nylon
Back CoverThermoplastic
Body MaterialImpact Modified Nylon
ColorBlack-White
Terminal ScrewsBrass
Mechanical Specifications
- Cord Range
- 0.385 to 0.720
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Wire Gauge
- 16-10 AWG
Horsepower Rating1 HP
Terminal Accom.18-10 AWG
Torque Range10-14 in-lbs
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Environmental Specifications
- Flammability
- Rated HB or better UL94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
