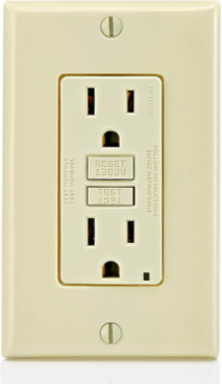

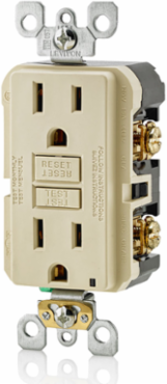

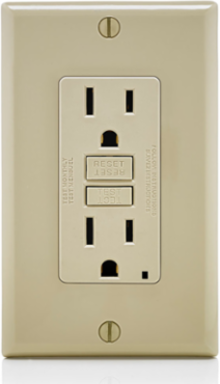

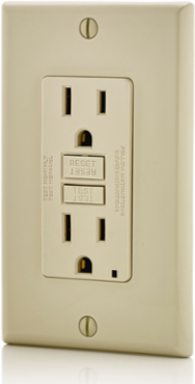

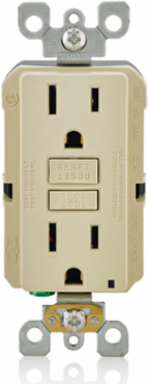

Leviton GFNT1-I 15 Amp Self-Test GFCI Outlet with LED Indicator Light, Nylon Wallplate, Ivory
- MPN: GFNT1-I
- UPC: 078477712542
- PPN: LEV-GFNT1-I
CAD
$22.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI, monochromatic, back and side wired, nylon wallplate/faceplate and self grounding clip included - Ivory
Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated.
- SAFE – Delivers continuous ground fault protection
- SELF TESTING – Automatically self-tests to ensure it can respond to ground fault
- SIMPLE – Status indicator light provides simple, intuitive feedback
- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| Applicable Standards and Certifications | UL|CSA|CSA C22.2 No. 144|CSA C22.2 No. 42|Fed Spec WC-596|UL 943|UL 498 |
|---|
| NEMA | WD-1 and WD-6 |
|---|
Material Specifications
| Body | Thermoplastic |
|---|---|
| Grounding Screw | #8 Galvanized Steel |
| Mounting Strap | Galvanized Steel |
| TR Shutter | Non-Tamper |
| Terminal Screws | #8 Plated Steel |
| Face | Thermoplastic |
|---|---|
| Line Contacts | Brass |
| Self-Grounding Clip | Yes |
| Terminal Clamps | Brass |
Mechanical Specifications
| Product ID | Ratings are marked on device |
|---|---|
| Torque Range | 14-18 lbs. |
| Termination | Back and Side Wire |
|---|---|
| Wire Accomodation | #10 - #14 AWG Copper, #10 - #12 Copper Clad |
Product Features
| Brand | SmartlockPro |
|---|---|
| Device Type | Duplex Receptacle/Outlet |
| Grade | Residential/Commercial Specification Grade |
| Product Type | GFCI |
| Color | Ivory |
|---|---|
| Feature(s) | Indicator Light, Self-Test |
| NEMA Configuration | 5-15R |
Warranty
| Warranty | 2-Year Limited |
|---|
Environmental Specifications
| Operating Temperature | Maximum Continuous 66°C, Minimum -35°C (w/o impact) |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Grounding | Self-Grounding |
| Pole(s) | 2 |
| Short Circuit Current Rating | 10 kA |
| Trip Level | Class A |
| Wire(s) | 3 |
| Dielectric Voltage | 1250 VAC |
|---|---|
| Horsepower Rating | 1 hp |
| Power Supply Input and Frequency | 125V, 60Hz |
| Temperature Rise | Max 30°C |
| Voltage | 125 VAC |
