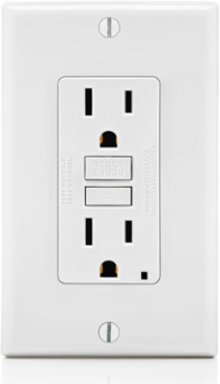

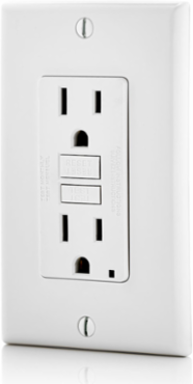

Leviton GFNT1-W 15 Amp, Self Test, Non Tamper-Resistant Slim GFCI Outlet with LED Indicator Light
Leviton GFNT1-W 15 Amp, Self Test, Non Tamper-Resistant Slim GFCI Outlet with LED Indicator Light
- MPN: GFNT1-W
- UPC: 078477712559
- PPN: LEV-GFNT1-W
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$22.36/ EA
Description

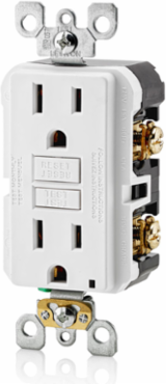

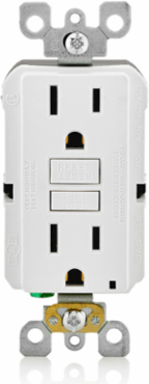

15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI, monochromatic, back and side wired, nylon wallplate/faceplate and self grounding clip included - White
Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated.
- SAFE – Delivers continuous ground fault protection
- SELF TESTING – Automatically self-tests to ensure it can respond to ground fault
- SIMPLE – Status indicator light provides simple, intuitive feedback
- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping
Specifications
Standards and Certifications
- ANSI
- C-73
- CSA-C22.2 No. 144.1-06
- File LR-57811
- MIL-SPEC
- A-A-55459-SB
- UL498
- Yes
CSA C22.2 No. 42Yes
Fed Spec WC-596Yes
NOMYes
Material Specifications
- Body Material
- Polycarbonate
- Face Material
- Thermoplastic
- Line Contacts
- Brass Double Wipe .031 Thick
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Yoke
- Zinc-Plated Steel
ClampsBrass
Grounding ScrewPlated Steel
Notesw/ Wallplate
Terminal Accom.14-10 AWG
Terminal ScrewsPlated Steel
Mechanical Specifications
- Amperage
- 15 A
- Brand
- SmartlockPro
- Face Material
- Thermoplastic
- Grade
- Residential/Commercial Specification Grade
- NEMA
- 5-15R
- Pole
- 2
- Screw Terminal Torque
- 14-18 in-lbs
- Strap Material
- Galvanized Steel
- Terminal Accom.
- 14-10 AWG
- Termination
- Back & Side
- Type
- Standard
- Warranty
- 2-Year Limited
Body MaterialPolycarbonate
ColorWhite
FeatureSelf-Test
GroundingSelf-Grounding
Notesw/ Wallplate
Product IDRatings are permanently marked on device
Standards and CertificationsUL/CSA, NEMA WD6, NEMA WD1
Tamper ResistantNo
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Trip LevelClass A, 5mA plus or minus 1mA
Voltage125 VAC
Wire3
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Wallplate
- Included
Environmental Specifications
- Body Material
- Polycarbonate
- Face Material
- Thermoplastic
- Line Contacts
- Brass Double Wipe .031 Thick
- Operating Temperature
- -35C to +66C
- Yoke
- Zinc-Plated Steel
ClampsBrass
Grounding ScrewPlated Steel
Notesw/ Wallplate
Terminal ScrewsPlated Steel
Electrical Specifications
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Short Circuit Current Rating
- 10KA
Operating Temperature-35C to +66C
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
- Short Circuit Current Rating
- 10KA
Dielectric VoltageWithstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
