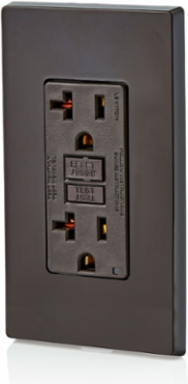

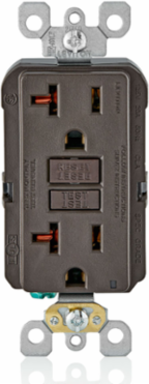

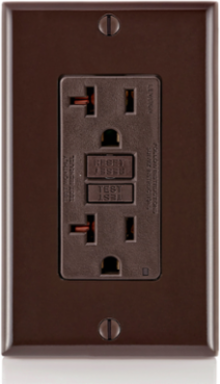

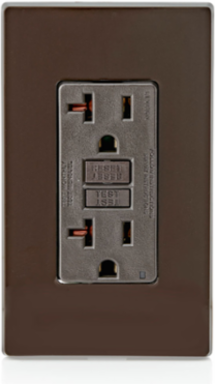

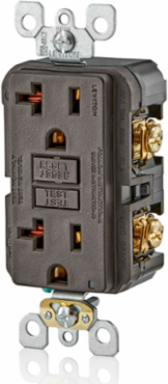

Leviton GFNT2 20 Amp Self-Test GFCI Outlet with LED Indicator Light, Brown, 125 VAC, 10KA
Leviton GFNT2 20 Amp Self-Test GFCI Outlet with LED Indicator Light, Brown, 125 VAC, 10KA
- MPN: GFNT2
- UPC: 078477712733
- PPN: LEV-GFNT2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$23.50/ EA
Description
20 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI, monochromatic, Residential/Commercial applications, back and side wired, heavy duty, wallplate/faceplate and self grounding clip included - Brown
Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated
- SAFE – Delivers continuous ground fault protection
- SELF TESTING – Automatically self-tests to ensure it can respond to ground fault
- SIMPLE – Status indicator light provides simple, intuitive feedback
- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping
Specifications
Standards and Certifications
- ANSI
- C-73
- CSA-C22.2 No. 144.1-06
- File LR-57811
- MIL-SPEC
- A-A-55459-SB
- UL 943
- File E48380
CSA C22.2 No. 42Yes
Fed Spec WC-596Yes
NOMYes
UL498Yes
Material Specifications
- Body Material
- Polycarbonate
- Face Material
- Thermoplastic
- Line Contacts
- Brass Triple-Wipe .031 Thick
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Yoke
- Zinc-Plated Steel
ClampsBrass
Grounding ScrewPlated Steel
Notesw/ Wallplate
Terminal Accom.14-10 AWG
Terminal ScrewsPlated Steel
Mechanical Specifications
- Amperage
- 20 A
- Brand
- SmartlockPro
- Face Material
- Thermoplastic
- Fed Spec WC-596
- Yes
- Grounding
- Self-Grounding
- Notes
- w/ Wallplate
- Product ID
- Ratings are permanently marked on device
- Standards and Certifications
- UL/CSA, NEMA WD6
- Tamper Resistant
- No
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Trip Level
- Class A, 5mA plus or minus 1mA
- Voltage
- 125 VAC
- Wire
- 3
Body MaterialPolycarbonate
ColorBrown
FeatureSelf-Test
GradeResidential/Commercial Specification Grade
NEMA5-20R
Pole2
Screw Terminal Torque14-18 in-lbs
Strap MaterialGalvanized Steel
Terminal Accom.14-10 AWG
TerminationBack & Side
TypeStandard
Warranty2-Year Limited
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Wallplate
- Included
Environmental Specifications
- Body Material
- Polycarbonate
- Face Material
- Thermoplastic
- Line Contacts
- Brass Triple-Wipe .031 Thick
- Operating Temperature
- -35C to +66C
- Yoke
- Zinc-Plated Steel
ClampsBrass
Grounding ScrewPlated Steel
Notesw/ Wallplate
Terminal ScrewsPlated Steel
Electrical Specifications
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Short Circuit Current Rating
- 10KA
Operating Temperature-35C to +66C
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
- Short Circuit Current Rating
- 10KA
Dielectric VoltageWithstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
