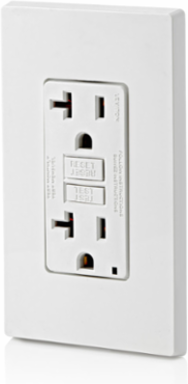

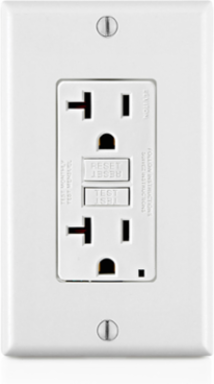

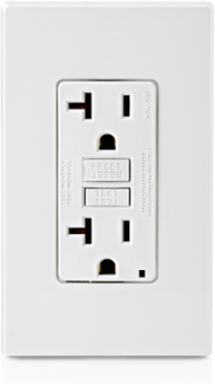

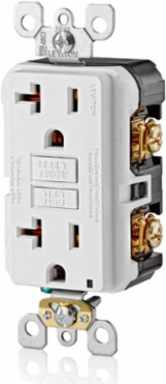

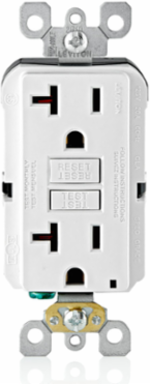

Leviton GFNT2-W 20 Amp Self-Test GFCI Outlet with LED Indicator, NEMA 5-20R, Back & Side Wired
Leviton GFNT2-W 20 Amp Self-Test GFCI Outlet with LED Indicator, NEMA 5-20R, Back & Side Wired
- MPN: GFNT2-W
- UPC: 078477712764
- PPN: LEV-GFNT2-W
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$23.50/ EA
Description
20 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI, monochromatic, Residential/Commercial applications, back and side wired, heavy duty, wallplate/faceplate and self grounding clip included - White
Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated
- SAFE – Delivers continuous ground fault protection
- SELF TESTING – Automatically self-tests to ensure it can respond to ground fault
- SIMPLE – Status indicator light provides simple, intuitive feedback
- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping
Specifications
- Amperage
- 20 A
- Short Circuit Current Rating
- 10 KA
- Operating Temperature
- -35°C to 66°C
- Pole
- 2
- Terminal Accom.
- 14-10 AWG
- Screw Terminal Torque
- 14-18 in-lbs
- Clamps
- Brass
- Grounding Screw
- Plated Steel
- Terminal Screws
- Plated Steel
- Body Material
- Polycarbonate
- Strap Material
- Galvanized Steel
- Compliance
- UL Listed, CSA Certified, NOM Certified, UL 943, CSA C22.2 No. 42, CSA-C22.2 No. 144.1-06, Fed Spec WC-596, RoHS Compliant
- NEMA Rating
- 5-20R
- Tamper Resistant
- No
- Status Indicator Light
- Red and Green LED
- Country of Origin
- China
- Warranty
- 2-Year Limited
Voltage125 VAC
Trip LevelClass A, 5mA ±1mA
Length Protrusion1.026 in
Wire3
TerminationBack & Side
Line ContactsBrass Triple-Wipe .031 Thick
YokeZinc-Plated Steel
GroundingSelf-Grounding
MaterialThermoplastic face, Polycarbonate body, Brass clamps and self-grounding clip
Face MaterialThermoplastic
ColorWhite
StandardsUL 943, UL 498, ANSI C-73, NEMA WD6, NEMA WD1
Dielectric VoltageWithstands 1250 VAC per UL 943 and CSA-C22.2 No. 144.1-06
Self-TestAuto-monitoring, tests within 3 seconds
Temperature RiseMax 30°C after 100 cycles OL at 150% rated current
BrandSmartlockPro
