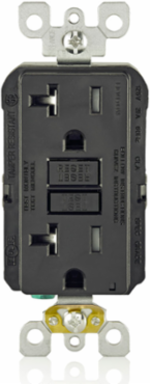

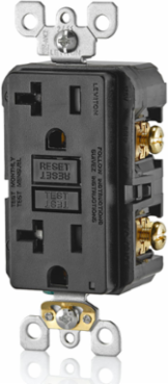

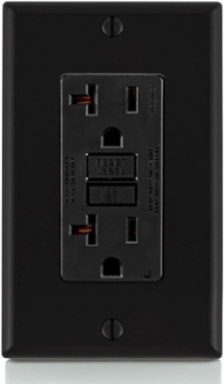

Leviton GFTR2-E 20 Amp Self-Test Tamper-Resistant GFCI Outlet, 125 Volt with LED Indicator
- MPN: GFTR2-E
- UPC: 078477497326
- PPN: LEV-GFTR2-E
CAD
$25.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

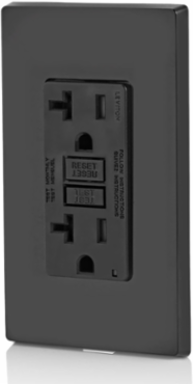

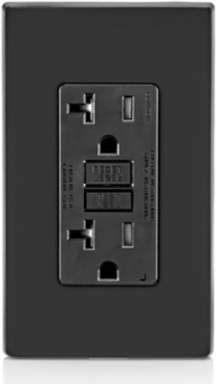

20 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro Slim GFCI, Monochromatic, Residential/Commercial applications, back and side wired, nylon wallplate/faceplate, screws and self grounding clip included - Black
Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected

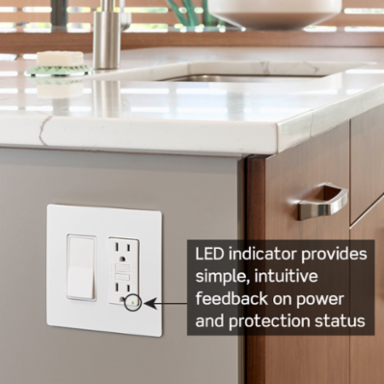

- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated
- SAFE – Delivers continuous ground fault protection
- SELF TESTING – Automatically self-tests to ensure it can respond to ground fault
- SIMPLE – Status indicator light provides simple, intuitive feedback
- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Horsepower Rating
- 1 HP
- Operating Temperature Range
- -35C to +66C
- Terminal Accommodation
- 14-10 AWG
- Screw Terminal Torque
- 14-18 in-lbs
- Line Contacts Material
- Brass Triple-Wipe
- Yoke Material
- Zinc-Plated Steel
- Face Material
- Thermoplastic
- Installation
- Back & Side Wired
- Wire
- 3
- Type
- Standard
- Self-Test
- Automatic
- Compliance
- UL 943, CSA Certified, Fed Spec WC-596, NOM, UL498, CSA C22.2 No.42
- NEMA Configuration
- 5-20R
- UL 943
- File E48380
- MIL-SPEC
- A-A-55459-SB
- Flammability
- V-2 per UL 94
- Color
- Black
- Brand
- SmartlockPro
Voltage125 VAC
Short Circuit Current Rating10 kA
Trip LevelClass A, 5mA ±1mA
Terminal Screws MaterialPlated Steel
Clamps MaterialBrass
Grounding Screw MaterialPlated Steel
Body MaterialPolycarbonate
Strap MaterialGalvanized Steel
Pole2
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Tamper ResistantYes
GradeResidential/Commercial Specification Grade
ANSIC-73
CSA-C22.2 No. 144.1-06File LR-57811
Fed Spec WC-596Yes
RoHS CompliantFalse
Temperature RiseMax 30C after 100 cycles OL at 150% rated current
Country of OriginChina
Warranty2-Year Limited
