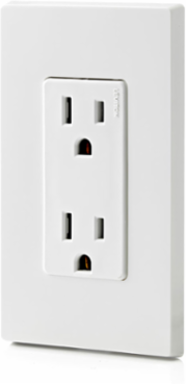

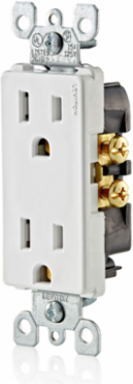

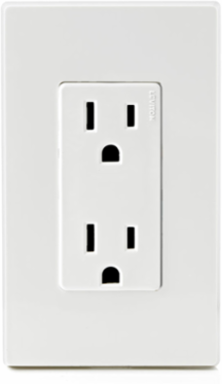

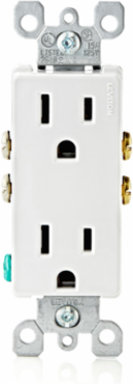

Leviton 5325-W 15 Amp Decora Duplex Outlet, Grounding, 125 Volt NEMA 5-15R, Durable Thermoplastic
- MPN: 5325-W
- UPC: 078477233306
- PPN: LEV-5325-W
CAD
$2.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 125 Volt, NEMA 5-15R, 2-Pole, 3-Wire, Decora Duplex Receptacle, Straight Blade, Residential Grade, Grounding, Quickwire Push-In & Side Wired, Steel Strap - White
Features
- Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Shallow depth for maximum wiring room
- Double-wipe power contacts for reliable conductivity and plug retention
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
- Limited 2-year warranty
- EASY - Quick wire push-in and side wiring for easy installation
- DURABLE - Impact-resistant thermoplastic nylon construction
- CONVENIENT - Shallow depth for maximum wiring room
- COMPATIBLE - For use with Leviton Decora wallplates
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- NEMA
- 5-15R
- Wires
- 3
- Grounding
- Yes
- Termination
- Quickwire Push-In & Side Wired
- Strap Material
- Steel, Zinc-Plated
- Flammability Rating
- UL 94 V-2
- Warranty
- 2-Year Limited
- Terminal Screws
- Brass
- Grounding Screw
- Steel 8-32
- Operating Temperature Range
- -40B0C to 60B0C
- Color
- White
Voltage125 VAC
Poles2
TypeDuplex Receptacle
Terminal Accommodations14-12 AWG, #14 AWG solid copper wire
Torque Range14-18 in-lbs
Body MaterialThermoplastic Nylon
ComplianceRoHS Compliant, CSA C22.2 No. 42, NOM Certified, UL 498 Listed
Terminal IDBrass-Hot, Green-Ground, White-Neutral
Ground ClipsBrass-Plated
Face MaterialThermoplastic
Country of OriginPlease Contact Customer Service
