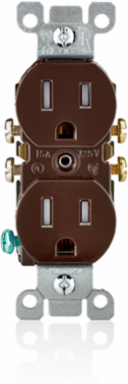

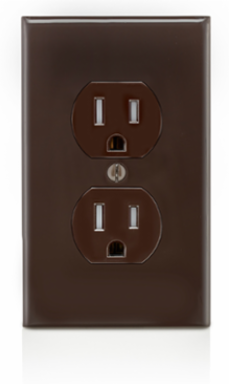

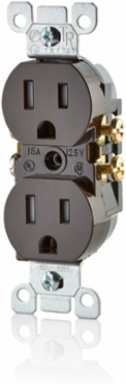

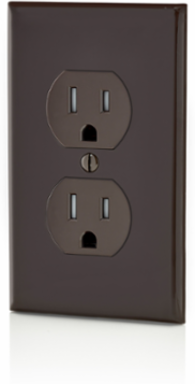

Leviton T5320 15 Amp Tamper-Resistant Duplex Outlet/Receptacle, Grounding, Brown
Leviton T5320 15 Amp Tamper-Resistant Duplex Outlet/Receptacle, Grounding, Brown
- MPN: T5320
- UPC: 078477381885
- PPN: LEV-T5320
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$2.42/ EA
Description
15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Grounding, Quickwire Push-In & Side, Standards and Certifications: UL/CSA, Warranty: 2 Year Limited, NEC compliant – Brown
Features
- Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Shallow depth for maximum wiring room
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
- Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
- TR symbol on strap assures they meet the latest NEC requirements
- Ultrasonic welding, heavy-duty construction offers long, trouble-free service life
- Limited 2-year warranty
- SAFE – Tamper-resistant offers protection from electrical shocks
- DURABLE – Impact-resistant thermoplastic nylon construction
- EASY – Quickwire push-in and side wiring for easy installation
- CONVENIENT – TR symbol on strap assures they meet the latest NEC requirements
Specifications
Product Features
- Amperage
- 15 A
- Color
- Brown
- Feature
- Tamper-Resistant
- NEMA
- 5-15R
- Terminal Accom.
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Torque Range
- 14 – 18 in.-lbs
- Voltage
- 125 VAC
- Wire
- 3
Blade TypeStraight Blade
Device TypeDuplex Receptacle
GroundingGrounding
Pole2
TerminationQuickwire Push-In & Side
TypeDuplex Receptacle
Warranty2-Year Limited
Specifications
- Country of Origin
- United States
RoHS CompliantFalse
Standards and Certifications
- CSA C22.2 No. 42
- File 152105; Class 6233-01
- UL 498
- File E13399
NOMNOM Certified
