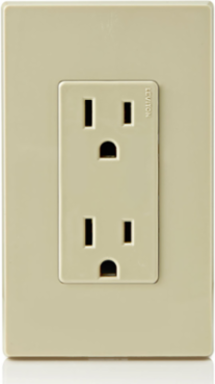

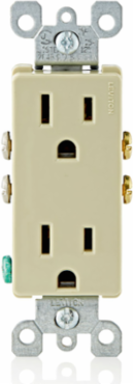

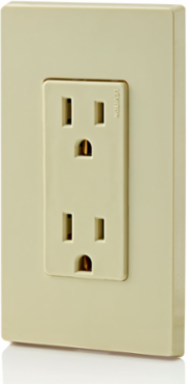

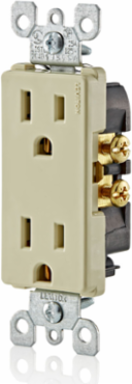

Leviton 5325-I 15 Amp Decora Duplex Outlet, 125 Volt, NEMA 5-15R, Grounding, Ivory
- MPN: 5325-I
- UPC: 078477233207
- PPN: LEV-5325-I
CAD
$2.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp, 125 Volt, NEMA 5-15R, 2-Pole, 3-Wire, Decora Duplex Receptacle, Straight Blade, Residential Grade, Grounding, Quickwire Push-In & Side Wired, Steel Strap - Ivory
Features
- Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Shallow depth for maximum wiring room
- Double-wipe power contacts for reliable conductivity and plug retention
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
- Limited 2-year warranty
- EASY - Quick wire push-in and side wiring for easy installation
- DURABLE - Impact-resistant thermoplastic nylon construction
- CONVENIENT - Shallow depth for maximum wiring room
- COMPATIBLE - For use with Leviton Decora wallplates
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Product Features
- Amperage
- 15 A
- Color
- Ivory
- Grounding
- Grounding
- Strap Material
- Steel
- Termination
- Quickwire Push-In & Side
- Type
- Duplex Receptacle
- Warranty
- 1-Year Limited
Body MaterialThermoplastic
Face MaterialThermoplastic
Pole2
Terminal Accom.Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only.
Torque Range14 – 18 in.-lbs
Voltage125 VAC
Wire3
Standards & Certifications
- CSA C22.2 No. 42
- File 152105; Class 6233-01
- NOM
- NOM Certified
NEMAWD-6
UL 498File E13399
