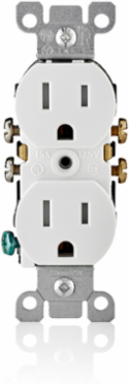

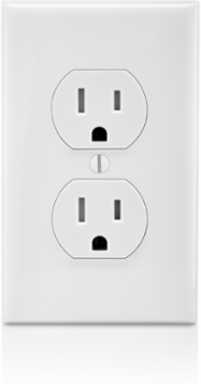

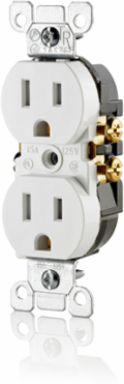

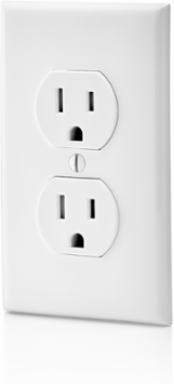

Leviton T5320-W 15 Amp Tamper-Resistant Duplex Outlet, 125 Volt, NEMA 5-15R, Grounding, White
- MPN: T5320-W
- UPC: 078477381618
- PPN: LEV-T5320-W
CAD
$2.42
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Grounding, Quickwire Push-In & Side, Standards and Certifications: UL/CSA, Warranty: 2 Year Limited, NEC compliant – White
Features
- Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Shallow depth for maximum wiring room
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
- Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
- TR symbol on strap assures they meet the latest NEC requirements
- Ultrasonic welding, heavy-duty construction offers long, trouble-free service life
- Limited 2-year warranty
- SAFE – Tamper-resistant offers protection from electrical shocks
- DURABLE – Impact-resistant thermoplastic nylon construction
- EASY – Quickwire push-in and side wiring for easy installation
- CONVENIENT – TR symbol on strap assures they meet the latest NEC requirements
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- NEMA
- 5-15R
- Wire
- 3
- Torque Range
- 14–18 in.-lbs
- Blade Type
- Straight Blade
- Termination
- Quickwire Push-In & Side
- Material
- Thermoplastic Nylon, Zinc-Plated Steel
- RoHS Compliant
- False
- Country of Origin
- United States
Voltage125 VAC
Pole2
Device TypeDuplex Receptacle
FeatureTamper-Resistant
GroundingGrounding
Terminal AccommodationSide wiring accepts #10, #12, and #14 AWG copper or #10 and #12 copper clad wire; Quickwire push-in terminals accept #14 AWG solid copper wire only
Standards and CertificationsUL Listed, CSA Certified, NOM Certified
ColorWhite
Warranty2-Year Limited
