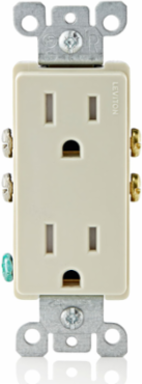

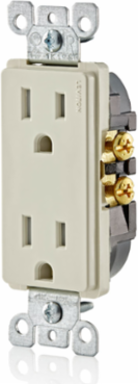

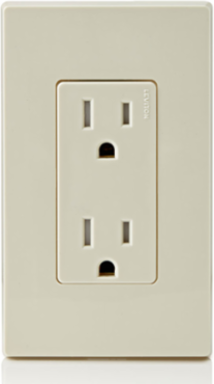

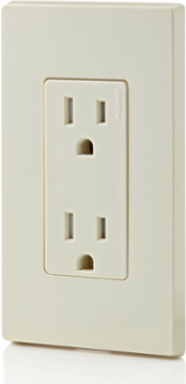

Leviton T5325-T 15 Amp Decora Tamper-Resistant Duplex Outlet 125 Volt, Light Almond
- MPN: T5325-T
- UPC: 078477381779
- PPN: LEV-T5325-T
CAD
$2.21
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Decora, Duplex Receptacle/Outlet, Straight Blade, Grounding, Quickwire Push-In & Side, Standards and Certifications: UL/CSA, Warranty: 2 Year Limited, NEC compliant - Light Almond
Features
- Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Shallow depth for maximum wiring room
- Double-wipe power contacts for reliable conductivity and plug retention
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
- Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
- TR symbol on strap assures they meet the latest NEC requirements
- Ultrasonic welding, heavy-duty construction offers long, trouble-free service life
- Limited 2-year warranty
- SAFE – Tamper-resistant offers protection from electrical shocks
- DURABLE - Impact-resistant thermoplastic nylon construction
- EASY - Quickwire push-in and side wiring for easy installation
- CONVENIENT - TR symbol on strap assures they meet the latest NEC requirements
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| RoHS Compliant | False |
|---|
Standards & Certifications
| CSA C22.2 No. 42 | File 152105; Class 6233-01 |
|---|---|
| NOM | NOM Certified |
| NEMA | WD-6 |
|---|---|
| UL 498 | File E13399 |
Product Features
| Amperage | 15 A |
|---|---|
| Color | Light Almond |
| Feature | Tamper-Resistant |
| Pole | 2 |
| Termination | Quickwire Push-In & Side |
| Type | Duplex Receptacle |
| Warranty | 2-Year Limited |
| Blade Type | Straight Blade |
|---|---|
| Company/brand | Decora |
| Grounding | Grounding |
| Terminal Accom. | Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only |
| Torque Range | 14 – 18 in.-lbs |
| Voltage | 125 VAC |
| Wire | 3 |
