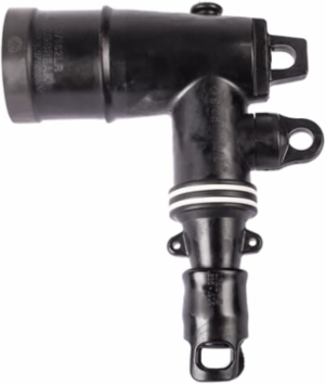

Thomas & Betts 162LRJS-C 15 LB ELB W/JS HOUSING .805-1.06
- MPN: 162LRJS-C
- UPC: 075114190862
- PPN: T-B-162LRJS-C
CAD
$217.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point (Housing Only), .805 inch - 1.060 Inch Cable Insulation Diameter
Specifications
Additional Information
- Application
- 15 kv, 200 Amp
- Color
- Black
- Includes
- 1 Elbow Connector Housing
- Material
- Housing - EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 11.47 inch End to Center of Installation Eye X 8.20 inch width, 2.87 inch Diameter
- Standards
- ANSI/IEEE Standard 386
- UPC
- 075114190862
Brand / LabelElastimold
Current Rating200 A
Insulation MaterialYes, EPDM Rubber
Number of Batteries0
Product TypeLoadbreak Elbow Connector with Test Point and Jacket Seal
Special Functions15kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Built in cable jacket seal. Non-corrosive capacitive test point.
Temperature Range-40 to +65 °C
Voltage Rating15 kV
Dimensions
- Product Net Weight
- 2.12 lb961.451 g
Container Information
- Package Level 1 Units
- 1 piece
- Package Level 2 Width
- 12.7 in323 mm
- Package Level 2 Depth / Length
- 19.3 in490 mm
Package Level 2 Units15 piece
Package Level 2 Height11.1 in282 mm
Classifications
- UNSPSC
- 39121421
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
WEEE CategoryProduct Not in WEEE Scope
Ordering
- EAN
- 0075114190862
Customs Tariff Number8535908020
