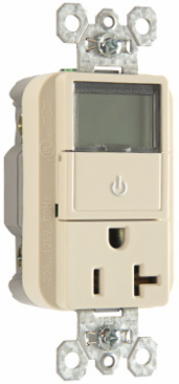

Pass & Seymour PLT26351LA 20A 125V Heavy Duty Plug Load Timer Receptacle, 1.73 Inch Width, Light Almond
- MPN: PLT26351LA
- UPC: 785007039856
- PPN: P-S-PLT26351LA
- UNSPSC: 39121406
CAD
$134.11
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 125V Heavy Duty Plug Load Timer Receptacle, 1.73 Inch Width, Light Almond
Features
- Receptacle compliant with 2014 NEC, CA Title 24, and ASHRAE 90.1.
- Products meets requirements of UL498B: Receptacles with integral switching means.
- Power button on face serves as a manual override to scheduled programs.
- Two individual programs can be set to automatically control plug loads.
- Corrosion-resistant, plated steel strap locked into face and back body to resist pulling away from face/body assembly.
- Bottom half of device features a single receptacle that is automatically controlled by the time clock.
- Clear LCD display shows program status, ON/OFF status, current time, and day of the week.
- Feed-thru capability allows for downstream control of multiple receptacles.
- Center panel flips open for easy, three button programming.
- Permanently molded power symbol on face identitfies controlled receptacle in accordance with ASHRAE 90.1, NEC, and Title 24.
- .032 inch think, brass triple-wipe power contracts for lasting retention.
- Auto-ground eliminates the necessity to terminate grounding conductor in device.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Wire Size: #14 - #10 AWG Copper Conductor Only
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 2.68 in |
| Color | Light Almond |
| Amperage | 20.0 A |
| Number of Poles | Double Pole |
| Environmental Conditions | UL94 V2 |
| Dielectric Strength | Withstands 2000V minimum |
| Standard | RoHS; CSA Listed; CulUS; UL Listed; FSUL; FEDSPEC |
| Wall Plate Included | No |
| Outlet Type | Straight Blade; Energy Saving On/Off |
| Connection Location | Back and Side |
| NEMA Configuration Code | 5-20R |
| Mounting Type | Box |
| Number of Receptacles | 1.0 |
| Depth | 1.25 in |
|---|---|
| Width | 1.73 in |
| Product Line | Pass & Seymour |
| Application Sector | Commercial |
| Phase | Single |
| Special Features | New requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of Pass&Seymour Plug Load Controllable solutions will take a load off your mind and a load off your customers' electric bills. |
| Number of Wires | 3.0 |
| Wire Size | 14 - 10 AWG |
| Voltage | 125.0 V |
| Indoor/Outdoor | Indoor |
| Warranty Type | 1-Year Limited Warranty |
| Wire Connection Type | Screw Terminals |
| Features | Single Piece Plated Steel Mounting Strap; Timer; Plugload |
