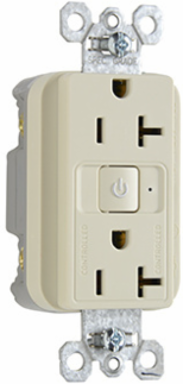

Pass & Seymour RF26352CHLA 20A 125V Light Almond RF Half-Control Spec Receptacle, 1.73 Inch Width

Description

Features

• Wireless control of plug load via RF communication and integral relay.
• Receptacle compliant with 2014 NEC, CA Title 24, and ASHRAE 90.1
• Product meets requirements of UL498B: Receptacles with integral switching means.
• Binding button on face also serves as a manual override.
• Simple, three-step binding process for wireless communication with RF Single Pack
• Corrosion-resistant plated steel strap locked into face and back body to resist pulling away from face/body assembly.
• Feed-thru capability allows for downstream control of multiple receptacles.
• .032 inch think, brass, triple-wipe power contacts for lasting retention.
• LED Indicator Light on the receptacle guides binding process and indicated power to the receptacle.
• Permanently molded face offers clear identification of controlled receptacle for end users.
• Auto-ground eliminates the necessity to terminate grounding conductor in device.
