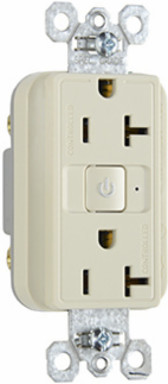

Pass & Seymour RF26352CDLA 20A 125V RF Dual-Control Duplex Receptacle, Light Almond, 2.68 Inch Height, 1.73 Inch Width
- MPN: RF26352CDLA
- UPC: 785007040081
- PPN: P-S-RF26352CDLA
CAD
$146.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V RF Dual-Control Duplex Receptacle, Light Almond, 2.68 Inch Height, 1.73 Inch Width
Features
- Wireless control of plug load via RF communication and integral relay.
- Available in 'TP' series, extra 3/16 inch width and height than Standard size plates: and 'TPJ' series, extra 3/16 inch width and height than Junior-Jumbo size plates.
- Product meets requirements of UL498B: Receptacles with integral switching means.
- Binding button on face also serves as a manual override.
- Simple, three-step binding process for wireless communication with RF Single Pack
- Corrosion-resistant plated steel strap locked into face and back body to resist pulling away from face/body assembly.
- .032 inch think, brass, triple-wipe power contacts for lasting retention.
- LED Indicator Light on the receptacle guides binding process and indicated power to the receptacle.
- Permanently molded face offers clear identification of controlled receptacle for end users.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.25 in
- Height
- 2.68 in
- Product Line
- Pass & Seymour
- Country of Origin
- China
- Standard
- FEDSPEC
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Features
- Dual-Controlled
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- Outlet Type
- Energy Saving On/Off
- Wire Connection Type
- Screw Terminals
- Wire Connection Type
- Internal Pressure Plates
ColorLight Almond
Width1.73 in
Amperage20.0 A
Voltage125.0 V
FeaturesPlugload
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
NEMA Configuration Code5-20R
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
