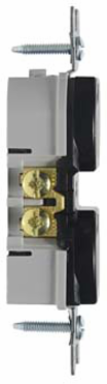

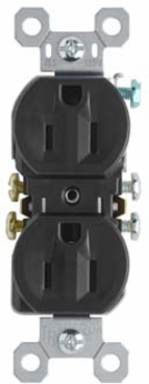

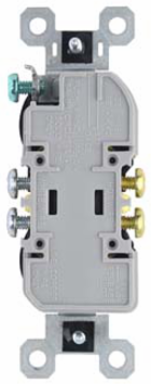

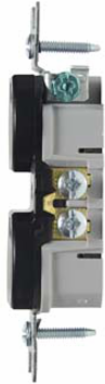

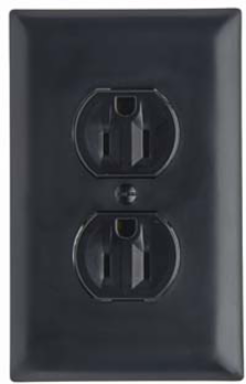

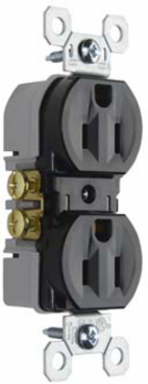

Pass & Seymour 3232TRBK Trademaster 15A/125V Tamper-Resistant Duplex Receptacle, Black, 3.31 Inch Height
- MPN: 3232TRBK
- UPC: 785007240306
- PPN: P-S-3232TRBK
CAD
$2.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Our Pass & Seymour TradeMaster® receptacles combine a traditional look with reliable, time-tested operation for any residential application. This receptacle is also outfitted with our patented automatic shutter system to prevent young children from inserting common objects, such as hairpins or keys. The shutters release when a plug is inserted. Required by the National Electrical Code® (NEC®).For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Features
- Meets 2008 National Electrical Code Tamper-Resistant requirements.
- Protects children: patented shutter system—now with black "invisi-shutters" that disappear for an invisible effect—helps prevent improper insertion of foreign objects.
- High-impact resistant thermoplastic construction.
- Extra-long strap.
- Quickloop wire looping aid.
- Long-term blade retention.
- Longer tri-drive screws for easier 12 AWG looping.
- Extra-large circuit break-off tabs.
- Side-access push wire release.
- Ultrasonic welding of face to back body.
- Side wire accepts #12 – #14 AWG solid wire.
- Push wire accepts #14 AWG solid only.
- Superior protection than traditional outlet caps or protection plates.
- Low profile face.
- Traditional contoured face (3232 models).
- Self-grounding models provide automatic ground clip.
Specifications
Buy American Act Compliance
- Country Of Origin
- CHINA
Buy American Act StatusNo
Technical Information
- Amps
- 15A
- NEMA Rating
- Yes
- Volts (AC)
- 125
NEMA Configuration Number5-15R
Volts125
Dimensions
- Depth (US)
- 1.0"
- Width (US)
- 1.320"
Height (US)3.31"
General Info
- Color
- Black
- Number Of Poles
- 2
TypeTamper Resistant Duplex
Number Of Wires3
Listing Agencies/Third Party Certifications
- RoHS
- Yes
- CSA Standard
- Yes
- UL Listing No
- UL498
- UN SPSC
- 39121406
CSA Listing InfoC22.2 No.42
cULusYes
UL StandardYes
