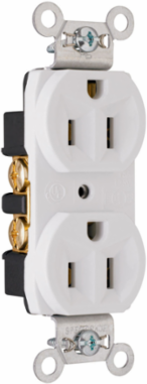

Legrand CRB5262W 15A 125V Commercial Duplex Receptacle, Back and Side Wire, White, 1.322 Inch Width
- MPN: CRB5262W
- UPC: 785007210163
- PPN: P-S-CRB5262W
CAD
$5.41
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15A 125V Commercial Duplex Receptacle, Back and Side Wire, White, 1.322 Inch Width
Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and thermoplastic back body.
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
- Terminal compartments isolated from each other for positive conductor containment.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Additional
| Voltage | 125 V |
|---|---|
| NEMA Configuration Code | 5-15R |
| Wire Size | 14 - 10 AWG copper or copper-clad conductors |
| Temperature Rise | Max 30 C at full load after 50 cycles at 150% |
| Dimensions | Width 1.322 in, Height 2.635 in, Depth 0.78 in |
| Connection Location / Wiring | Back and Side Wire |
| Material | Nylon face, Thermoplastic back body, Matte finish, Single piece corrosion-resistant plated steel mounting strap |
| Compliance | UL 498, FEDSPEC, cULus Listed, Federal Spec Listed |
| Country of Origin | Mexico |
| Amperage | 15 A |
|---|---|
| Number of Poles | Double Pole |
| Number of Wires | 3 |
| Operating Temperature | -40 C to +60 C |
| Number of Receptacles | 2 |
| Wire Connection Type / Terminal Type | Screw Terminals, 8 hole internal screw-pressure-plate back wire terminals |
| Grounding | Auto-ground clip |
| Indoor/Outdoor | Indoor |
| Product Line | Pass & Seymour |
