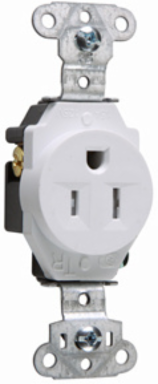

Pass & Seymour TR5251W 15A 125V Construction Spec-Grade Tamper-Resistant Single Receptacle, Back and Side Wire, White

15A 125V Construction Spec-Grade Tamper-Resistant Single Receptacle, Back and Side Wire, White
  • MPN: TR5251W
  • UPC: 785007241938
  • PPN: P-S-TR5251W

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$12.87/ EA

Description

15A 125V Construction Spec-Grade Tamper-Resistant Single Receptacle, Back and Side Wire, White

Features

  • Dual mechanical shutter system to help prevent insertions of foreign objects.
  • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick brass triple-wipe power contacts for lasting retention.
  • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact

Specifications

Specifications

Depth
1.19 in
Color
White
Width
1.38 in
Country of Origin
Mexico
Amperage
15.0 A
Number of Wires
3.0
Wire Size
14 - 10 AWG
Is Tamper-Resistant
Yes
Standard
CSA C22.2 No. 42
Number of Poles
Double Pole
Application Sector
Commercial
Connection Location
Back and Side
Warranty Type
1-Year Limited Warranty
Operating Temperature Min
-40.0 °C
Operating Temperature
-40°-60°C
Height3.28 in
FinishMatte
Product LinePass & Seymour
StandardUL498
Voltage125.0 V
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles1.0
Outlet TypeStraight Blade
Outlet TypeTamper-Resistant
NEMA Configuration Code5-15R
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
FeaturesHeavy Duty Steel Mounting Strap
Dielectric StrengthWithstands 2000V minimum

Downloads
