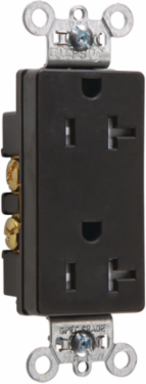

Pass & Seymour TR26342BK 20A 125V Tamper-Resistant Decorator Duplex Receptacle, Black, 1.37 Inch Width
- MPN: TR26342BK
- UPC: 785007034721
- PPN: P-S-TR26342BK
CAD
$6.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 125V Tamper-Resistant Decorator Duplex Receptacle, Black, 1.37 Inch Width
Features
- Dual mechanical shutter system to help prevent insertions of foreign objects.
- AC receptacles available in 15 and 20A, 125V.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive steel terminal screws. Side wire only.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Additional
| Amperage | 20 A |
|---|---|
| Current Interrupting | Certified for current interrupting at full-rated current |
| Maximum Working Voltage | 250 V |
| Operating Temperature | -406C to +606C continuous |
| Number of Wires | 3 |
| Connection Location | Side Only |
| Tamper-Resistant | Yes |
| Height | 3.28 in |
| Finish | Matte |
| Flammability | UL94 V2 |
| Country of Origin | Mexico |
| Indoor/Outdoor | Indoor |
| Product Line | Pass & Seymour |
| NEMA Configuration Code | 5-20R |
| Voltage | 125 V |
|---|---|
| Dielectric Withstand Voltage | 2000 V minimum |
| Temperature Rise | Max 306C at full-rated current after 50 cycles overload at 150% |
| Number of Poles | Double Pole |
| Number of Receptacles | 2 |
| Wire Connection Type | Screw Terminals |
| Width | 1.37 in |
| Depth | 0.93 in |
| Material | Nylon face and back body; Zinc-plated steel mounting strap; Brass line (.032) and ground (.040) contacts; Thermoplastic tamper-resistant shutters; Steel terminal screws (#8 Tri-Drive, neutral nickel-plated), ground screw (#8 Hex Tri-Drive steel zinc coated with green chromate), auto-ground clip and mounting screws |
| Compliance | cULus Listed, UL Listed, CSA Certified |
| Color | Black |
| Outlet Type | Tamper-Resistant |
| Application Sector | Commercial |
| Warranty Type | 1-Year Limited Warranty |
