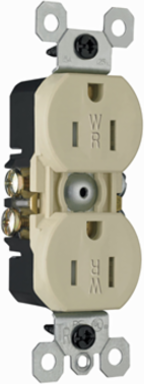

Pass & Seymour 3232TRWRI Trademaster® 15A 125V Weather-Resistant Duplex Receptacle, Ivory, 3.31 Inch Height
- MPN: 3232TRWRI
- UPC: 785007241822
- PPN: P-S-3232TRWRI
CAD
$6.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Whether you need to plug in a hedge trimmer, light a driveway, pathway or deck, or enjoy your favorite music by the pool, our Pass & Seymour weather-resistant receptacles are the better solution. And since this receptacle is tamper resistant as required by the National Electrical Code® (NEC®), you can feel confident that your children will be protected.
Features
- Residential Weather-Resistant Receptacles are Tamper-Resistant as required by 2008 National Electrical Code.
- Listed to the Weather-Resistant supplement of UL498, meeting demanding UL requirements including: Ultraviolet light exposure test; Cold impact test; Accelerated aging test; Stringent material requirements for current-carrying parts, wire binding screws and mounting straps to ensure superior corrosion resistance.
- WR markings on face per UL Weather-Resistant requirements.
- Patented internal shutter system lets plugs in, but keeps keys and other objects out with automatic shutters that block access.
- Side wire accepts #12 – #14 AWG solid wire.
- Push wire accepts #14 AWG solid only.
- Low profile face.
- Traditional contoured face.
- High-impact resistant thermoplastic construction.
- Safer and more effective than plastic outlet caps.
- TR markings identify devices as Tamper-Resistant.
- For covering patents, see www.legrand.us/patents.
Specifications
Buy American Act Compliance
- Country Of Origin
- MEXICO
Buy American Act StatusTrade Agreement Act Compliant
Technical Information
- Amps
- 15A
- NEMA Rating
- Yes
- Volts (AC)
- 125
NEMA Configuration Number5-15R
Volts125
Dimensions
- Depth (US)
- 1.0"
- Width (US)
- 1.32"
Height (US)3.31"
General Info
- Color
- Ivory
- Number Of Poles
- 2
- Special Features
- Weather-Resistant
TypeDuplex
Number Of Wires3
Listing Agencies/Third Party Certifications
- RoHS
- Yes
- CSA Standard
- Yes
- UL Listing No
- UL498
- UN SPSC
- 39121406
CSA Listing InfoC22.2 No.42
cULusYes
UL StandardYes
