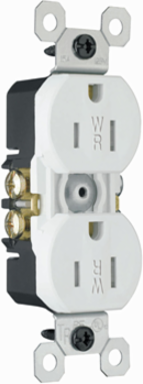

Pass & Seymour 3232TRWRW Trademaster 15A 125V Weather-Resistant Duplex Receptacle, White, 3.31 Inch Height
- MPN: 3232TRWRW
- UPC: 785007241839
- PPN: P-S-3232TRWRW
CAD
$6.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Whether you need to plug in a hedge trimmer, light a driveway, pathway or deck, or enjoy your favorite music by the pool, our Pass & Seymour weather-resistant receptacles are the better solution. And since this receptacle is tamper resistant as required by the National Electrical Code® (NEC®), you can feel confident that your children will be protected.
Features
- Residential Weather-Resistant Receptacles are Tamper-Resistant as required by 2008 National Electrical Code.
- Listed to the Weather-Resistant supplement of UL498, meeting demanding UL requirements including: Ultraviolet light exposure test; Cold impact test; Accelerated aging test; Stringent material requirements for current-carrying parts, wire binding screws and mounting straps to ensure superior corrosion resistance.
- WR markings on face per UL Weather-Resistant requirements.
- Patented internal shutter system lets plugs in, but keeps keys and other objects out with automatic shutters that block access.
- Side wire accepts #12 – #14 AWG solid wire.
- Push wire accepts #14 AWG solid only.
- Low profile face.
- Traditional contoured face.
- High-impact resistant thermoplastic construction.
- Safer and more effective than plastic outlet caps.
- TR markings identify devices as Tamper-Resistant.
- For covering patents, see www.legrand.us/patents.
Specifications
Buy American Act Compliance
| Country Of Origin | MEXICO |
|---|
| Buy American Act Status | Trade Agreement Act Compliant |
|---|
Technical Information
| Amps | 15A |
|---|---|
| NEMA Rating | Yes |
| Volts (AC) | 125 |
| NEMA Configuration Number | 5-15R |
|---|---|
| Volts | 125 |
Dimensions
| Depth (US) | 1.0" |
|---|---|
| Width (US) | 1.32" |
| Height (US) | 3.31" |
|---|
General Info
| Color | White |
|---|---|
| Number Of Poles | 2 |
| Special Features | Weather-Resistant |
| Type | Duplex |
|---|---|
| Number Of Wires | 3 |
Listing Agencies/Third Party Certifications
| RoHS | Yes |
|---|---|
| CSA Standard | Yes |
| UL Listing No | UL498 |
| UN SPSC | 39121406 |
| CSA Listing Info | C22.2 No.42 |
|---|---|
| cULus | Yes |
| UL Standard | Yes |
