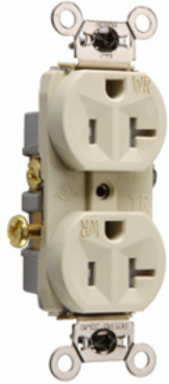

Pass & Seymour WR20TRI 20A 125V Weather-Resistant Duplex Receptacle, Ivory, 0.78 Inch Depth
- MPN: WR20TRI
- UPC: 785007242546
- PPN: P-S-WR20TRI
CAD
$18.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 125V Weather-Resistant Duplex Receptacle, Ivory, 0.78 Inch Depth
Features
- Auto-ground clip assures positive ground.
- Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Tri-drive brass terminal screws. Internal screwpressure plate back and side wire capability. Two back wire holes for more wiring flexibility.
- Heavy-duty, brass strap for added strength and ground conductivity.
- Two drive screws anchor strap to backbody and face where abrupt removal torque is strongest.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- .032 inch thick brass triple-wipe power contacts for lasting retention.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Standard
- UL498
- Amperage
- 20.0 A
- Country of Origin
- Mexico
- Features
- Weatherproof
- Indoor/Outdoor
- Outdoor
- Is Tamper-Resistant
- Yes
- Standard
- CSA C22.2 No. 42
- Outlet Type
- Tamper-Resistant
- Connection Location
- Side Only
- NEMA Configuration Code
- 5-20R
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Wire Connection Type
- Internal Pressure Plates
- Finish
- Matte
Height2.635 in
Width1.322 in
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
Application SectorCommercial
FeaturesBrass Mounting Strap
Outlet TypeWeather-Resistant
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Dielectric StrengthWithstands 1500V minimum
ColorIvory
Product LinePass & Seymour
