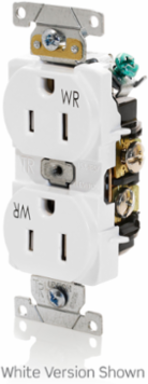

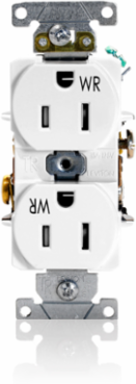

Leviton TWR15-W Weather & Tamper-Resistant Duplex Receptacle, 15 Amp, 125 Volt, NEMA 5-15R
- MPN: TWR15-W
- UPC: 078477381847
- PPN: LEV-TWR15-W
CAD
$22.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Weather and Tamper-Resistant,Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Material Specifications
- Body Material
- PBT Polyester Blend
- Ground Clips
- Brass
- Grounding Screw
- #8 hex head, triple drive Brass
- Mounting Screws
- Triple-Drive Plated Steel
- Strap Material
- Steel
- Terminal Clamps
- Brass
- Terminal Screws
- #8 Triple-Drive Brass
- Wire Type
- Stranded or Solid
Face MaterialPBT Polyester Blend
Ground Contacts0.030" Brass
Line Contacts0.030" Phosphor Bronze
Product IDRatings are permanently marked on device
Terminal Accom.#14 AWG - #10 AWG
Terminal IDBrass - Hot, Green - Ground, Silver - Neutral
TerminationBack or Side Wire
Mechanical Specifications
- Color
- Ivory
- Device Type
- Duplex Receptacle Outlet
- Grade
- Heavy-Duty Industrial Specification Grade
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- #14 AWG - #10 AWG
- Termination
- Back or Side Wire
Color / FeatureBlack
FeatureWeather-Resistant|Smooth Face|Tamper-Resistant
NEMA5-15R
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass - Hot, Green - Ground, Silver - Neutral
Wire TypeStranded or Solid
AC Horsepower Rating
- Amperage
- 15 A
- Grounding
- Self-Grounding
- Pole
- 2
- Voltage
- 125 VAC
Dielectric VoltageWithstands 3000 V minimum
Horsepower Rating1/2 HP
Temperature RiseMax 30 °C after 250 cycles OL at 200 percent rated current
Wire3
Warranty
- Horsepower Rating
- 1/2 HP
Warranty10-Year Limited
Environmental Specifications
- Body Material
- PBT Polyester Blend
- Face Material
- PBT Polyester Blend
- Ground Clips
- Brass
- Grounding Screw
- #8 hex head, triple drive Brass
- Mounting Screws
- Triple-Drive Plated Steel
- Strap Material
- Steel
- Terminal Screws
- #8 Triple-Drive Brass
ColorIvory
FlammabilityRated V-0 per UL 94
Ground Contacts0.030" Brass
Line Contacts0.030" Phosphor Bronze
Operating Temperature-40°C to 75°C
Terminal ClampsBrass
Electrical Specifications
- Amperage
- 15 A
- Flammability
- Rated V-0 per UL 94
- Operating Temperature
- -40°C to 75°C
- Temperature Rise
- Max 30 °C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Dielectric VoltageWithstands 3000 V minimum
GroundingSelf-Grounding
Pole2
Voltage125 VAC
Standards & Certifications
- ANSI
- C-73
- Certification/Listing
- cULus, NOM-ANCE
Applicable StandardsUL 498, Fed Spec W-C-596, CSA C22.2. No. 42
RoHSRoHS Compliant
