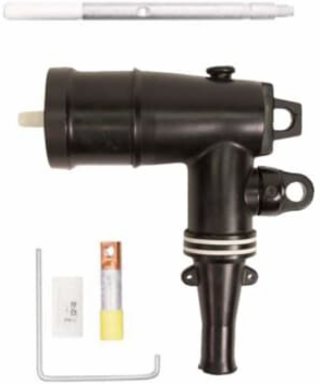

Thomas & Betts 162LR-B (CTN) 15KV 200A LB ELBOW B CTN W/TP
- MPN: 162LR-B (CTN)
- UPC: 075114186315
- PPN: T-B-162LR-B (CTN)
- UNSPSC: 39121421
CAD
$212.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.635 inch to 0.905 inch.
Specifications
Additional Information
| Application | Designed for connecting to and operating 15kV class, 200 Amp Distribution Apparatus. |
|---|---|
| Color | Black |
| Effective Date | 20141025 |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Cable Insulation Diameter 0.635 inch to 0.905 inch. |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 15 kV |
| Brand / Label | Elastimold |
|---|---|
| Current Rating | 200 A |
| Environmental Conditions | Fully Submersible |
| Material | Housing - EPDM Rubber |
| Product Type | Loadbreak Elbow Connector with Test Point |
| Special Functions | Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Non-Corrosive Capacitive Test Point. |
| Temperature Range | -40 to +65 °C |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
