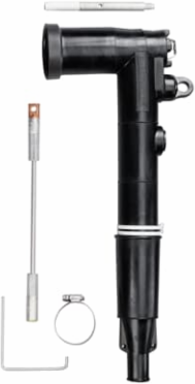

Thomas & Betts 168RLR-J5260-SG3 15KV REPLACEMENT ELBOW 200A LB-SG3
- MPN: 168RLR-J5260-SG3
- UPC: 075114414869
- PPN: T-B-168RLR-J5260-SG3
- UNSPSC: 39121421
CAD
$989.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG Compressed Stranded 3/0 or Solid Compact 4/0. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. SG3 - Cold Shrinkable Seal with Copper Braid and Constant Force Spring. Includes Elbow Connector Housing, Long Bi-Metal Compression Lug, Probe Wrench, Probe, Hose Clamp, Crimp Chart, Installation Instructions and Tube of Lubricant.
Features
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 10-1/2 inch (266.7mm). Non-Corrosive Capacitive Test Point
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Compression
- Conductor Range
- 3/0 STR/COMPR AWG , 4/0 SOL/COMPT AWG
- Voltage Rating
- 15 kV
- Amperage Rating
- 200 A
- Temperature Rating
- -40 to +65 C
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
ApplicationDesigned for connecting to and operating 15kV Class, 95kV BIL apparatus
StandardANSI/IEEE Standard 386
MaterialHousing EPDM Rubber
ColorBlack
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
