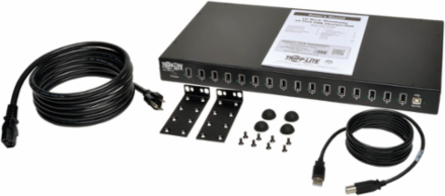

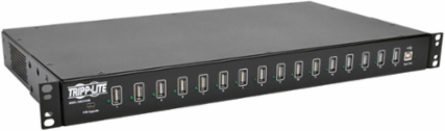

Tripp Lite U280-016-RM 16-Port USB Charging Station, 5V 40A / 200W, Sync Capable, Steel
Tripp Lite U280-016-RM 16-Port USB Charging Station, 5V 40A / 200W, Sync Capable, Steel
- MPN: U280-016-RM
- UPC: 037332182715
- PPN: TRP-U280-016-RM
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$921.85/ EA
Description
16-Port USB Charging Station, 5V 40A / 200W, Sync Capable, Steel
Features

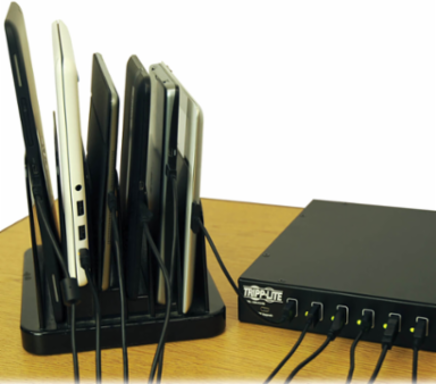

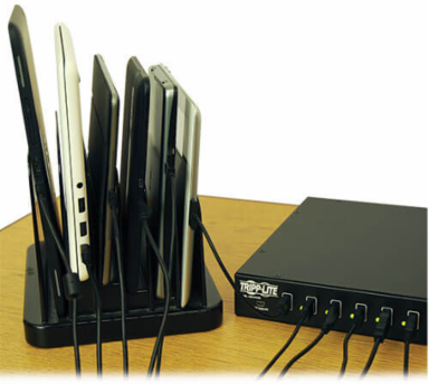

- Sync and charge up to 16 tablets, phones, or other mobile device
- Provides up to 5V, 2.4A (12 Watts) of power per port, for charging battery-intensive devices such as an iPad
- Charge your devices without the need to connect to a computer
- Sync your devices using their file management software, such as Apple iTunes or Apple Configurator
- Supports USB 2.0 data transfer rates up to 480Mbps
- Mounting hardware included for use in a rack installation
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 2-year limited warranty
Specifications
Features & Specifications
- Driver Required
- No
TechnologyUSB
Certifications
- Certifications
- Tested to UL 60950-1: 2007, CAN/CSA-C22.2 No. 60950-1:07, IEC 60950, FCC & IEC Class B, NOM, RoHS, REACH
Connections
- Ports
- 16
- Side A - Connector 2
- USB B (FEMALE)
- Side B - Connector 1
- IEC-320-C14; USB B (FEMALE)
Side A - Connector 1(16) USB A (FEMALE)
Side A - Connector 3MICRO-USB B (FEMALE)
Physical
- Color
- Black
- Shipping Dimensions (hwd / in.)
- 4.20 x 13.70 x 21.10
- Unit Dimensions (hwd / in.)
- 1.7 x 17.3 x 9.4
- Unit Weight (lbs.)
- 7.5
Material of ConstructionSteel
Shipping Weight (lbs.)10.70
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- Green (16x USB Charging, 1x Sync)
Input
- Input Connection Type
- IEC320-C14
- Input Frequency
- 50/60Hz
Voltage Compatibility (VAC)100; 110; 120; 125; 127; 200; 208; 220; 230; 240
Input Current2.5A
Output
- Charging Ports / Amps
- (16) 2.4A
- Charging Method
- USB
Output Capacity5V 20A (200W)
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 5% to 95% RH, Non-Condensing
- BTUs
- 160.6 BTU/Hr (Full Load)
Storage Temperature Range5 to 122 F (-15 to 50 C)
AC Mode Efficiency Rating (100% Load)78.88
Power Consumption (Watts)47
Overview
- UPC Code
- 037332182715
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Downloads
