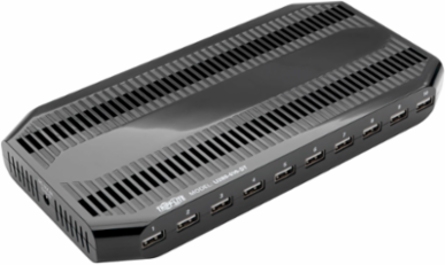

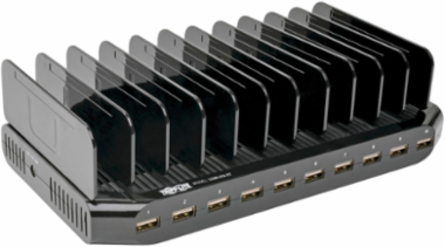

Tripp Lite U280-010-ST 10-Port USB Charging Station, 12V 8A Output, Adjustable Storage
Tripp Lite U280-010-ST 10-Port USB Charging Station, 12V 8A Output, Adjustable Storage
- MPN: U280-010-ST
- UPC: 037332190352
- PPN: TRP-U280-010-ST
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$228.34/ EA
Description

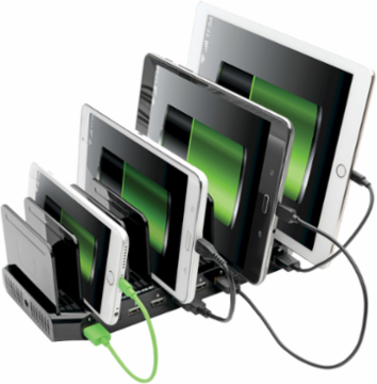

Charges up to 10 electronic devices, including tablets, cell phones and laptops, at the same time via USB connection. Neatly organizes the devices within its adjustable storage brackets while charging.
Features
- Up to 5V, 2.4A per port for charging battery-intensive devices
- All ten ports support USB Battery Charging (BC) specification v1.2
- External dual-voltage power supply with NEMA 5-15P plug
- Protects against overheating, overcurrent and overcharging

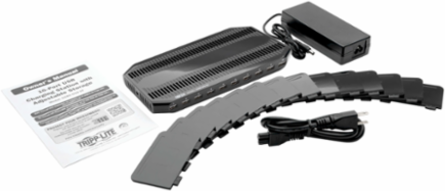

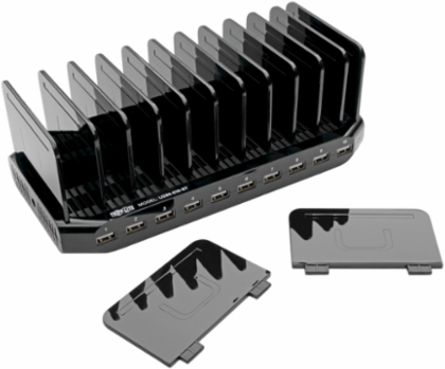

- Includes 14 adjustable storage brackets for organizing devices
- Charges anywhere AC power is available—no computer required
- 2-year limited warranty
- Charges Up to 10 Devices at the Same Time
- Provides Plenty of Juice for Charging
- Also Functions as Efficient Storage
- Easy to Use
Specifications
Features & Specifications
- Technology
- USB
Certifications
- Certifications
- EN 55022: 2010/AC: 2011, EN 55024: 2010, FCC Class B, RoHS, REACH
Connections
- Ports
- 10
- Side B - Connector 1
- (10) USB A (FEMALE)
Side A - Connector 1NEMA 5-15P
Physical
- Color
- Black
- Shipping Dimensions (hwd / in.)
- 3.11 x 10.59 x 6.14
- Unit Dimensions (hwd / in.)
- 1 x 9.4 x 4.7
- Unit Weight (lbs.)
- 0.57
Material of ConstructionPC
Shipping Weight (lbs.)2.71
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- Blue (Power)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 12V/8A

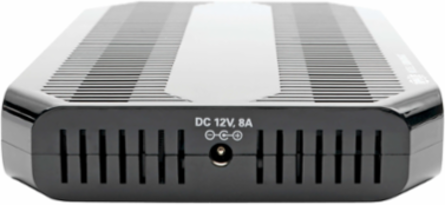

- External Power Supply DC Barrel Connector Specs
- OD: 5.5 x 2.5 x 10mm, Positive Pin, Negative Sleeve
- External Power Supply Certifications
- CCC; CE; FCC; GS; PSE; RoHS; TUV; UL; cUL
External Power Supply Input Specs (V / Hz / A)100-240V, 50/60Hz, 3.0A MAX
External Power Supply Cord Length (m.)1
External Power Supply Plug(s)NEMA 5-15P North America
Output
- Charging Ports / Amps
- (10) 2.4A
- Charging Method
- USB
Output Capacity12V 8A
Environmental
- Operating Temperature Range
- 41 to 95 F (5 to 35 C)
- Relative Humidity
- 20% to 80% RH, Non-Condensing
Storage Temperature Range-4 to 122 F (-20 to 50 C)
Power Consumption (Watts)34W (Operating) 0.27W (Standby)
Overview
- UPC Code
- 037332190352
AC Adapter100-240V, 50/60Hz, 3A; Output: 12V, 8A, 3-ft.
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
