Tripp Lite U280-007-CQC-ST 7-Port USB Charging Station, 15V 4A Output, Quick Charge 3.0, USB-C
Tripp Lite U280-007-CQC-ST 7-Port USB Charging Station, 15V 4A Output, Quick Charge 3.0, USB-C
- MPN: U280-007-CQC-ST
- UPC: 037332199577
- PPN: TRP-U280-007-CQC-ST
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$141.74/ EA
Description

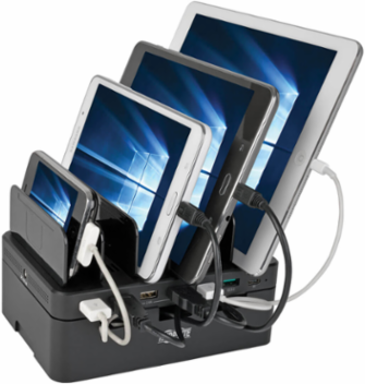

Charges and organizes up to 7 electronic devices at the same time. Storage compartment neatly organizes your excess cabling to reduce clutter when charging, and stores it out of the way when not in use. Recommended for quick-charging and storing tablets, smartphones and other mobile devices.
Features
- 5 USB-A ports provide up to 5V, 2.4A of charging power and are USB Battery Charging (BC) specification v1.2 compliant
- USB-C port provides up to 5V, 3A of charging power
- Quick Charge 3.0 port charges up to 4x faster than normal charging

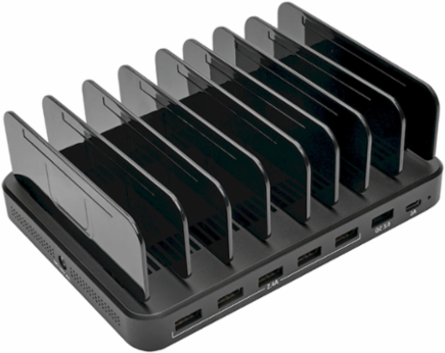

- 9 adjustable storage brackets for organizing devices

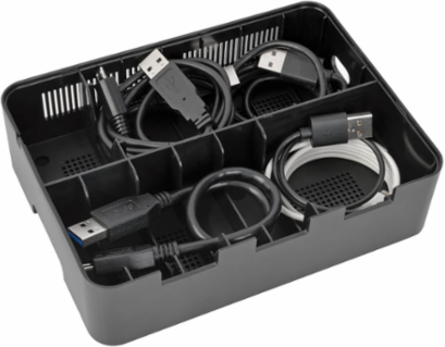

- Storage compartment neatly organizes your cabling
- 2-year limited warranty
- Charges Up to 7 Devices at the Same Time
- Provides Plenty of Juice for Charging
- Efficiently Stores Your Cables / Devices Too
- Easy to Use
Specifications
Features & Specifications
- Technology
- USB
Certifications
- Certifications
- Tested to FCC, REACH, RoHS
Connections
- Ports
- 7
- Side B - Connector 1
- USB C (FEMALE)
Side A - Connector 1NEMA 1-15P (NON-POLARIZED)
Side B - Connector 2(6) USB A (FEMALE)
Physical
- Color
- Black
- Shipping Dimensions (hwd / in.)
- 2.80 x 6.30 x 10.20
- Unit Dimensions (hwd / in.)
- 0.79 x 6.6 x 4.9
- Unit Weight (lbs.)
- 1.4
Material of ConstructionPC
Shipping Weight (lbs.)2.00
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- Blue (Power)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 15V / 4A
- External Power Supply DC Barrel Connector Specs
- OD: 5.5 x 2.5 x 10mm, Positive Pin, Negative Sleeve
- External Power Supply Certifications
- CCC; FCC; GS; PSE; RoHS; TUV; UL; cUL
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 1.5A
External Power Supply Cord Length (m.)1
External Power Supply Plug(s)NEMA 1-15P North America
Output
- Charging Ports / Amps
- (5) 2.4A; (1) 3A; (1) 3A / 2A / 1.5A
- Charging Method
- USB
Output Capacity15V 4A
Environmental
- Operating Temperature Range
- 41 to 95 F (5 to 35 C)
- Relative Humidity
- 20% to 80% RH, Non-Condensing
Storage Temperature Range-4 to 122 F (-20 to 50 C)
Power Consumption (Watts)15.6W (Operating) 0.07W (Standby)
Overview
- UPC Code
- 037332199577

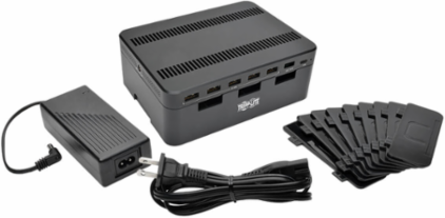

AC AdapterInput: 100-240V, 50/60Hz, 1.5A; Output: 15V, 4A
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Downloads
