Tripp Lite U280-005-WS4C1 5-Port USB Charging Station, 110W Max, 4 USB-A & 1 USB-C PD 3.0
Tripp Lite U280-005-WS4C1 5-Port USB Charging Station, 110W Max, 4 USB-A & 1 USB-C PD 3.0
- MPN: U280-005-WS4C1
- UPC: 037332241030
- PPN: TRP-U280-005-WS4C1
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$204.28/ EA
Description
5-Port USB Charging Station, 110W Max, 4 USB-A & 1 USB-C PD 3.0
Features
- Certified by USB-IF to ensure highest-grade construction and performance
- USB-C port charges PD 3.0 devices up to 4 times faster than normal USB charging
- Auto-sensing USB-A ports adjust charging power for optimum charge and compatibility
- Stops charging when connected device is at full capacity to protect battery from damage
- Connects to any NEMA 1-15R, 5-15R or 5-15R/20R AC outlet for immediate charging
- 2-year limited warranty

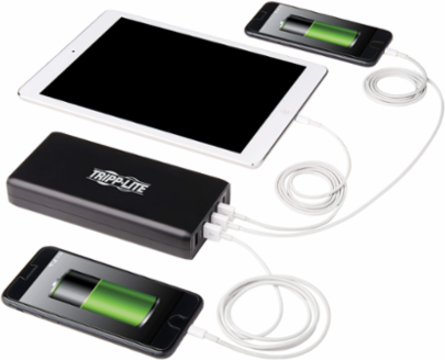

- Portable USB Charging Station Charges Up to 5 Devices at the Same Time
- Provides Plenty of Juice for Charging with Auto-Sensing Technology
- USB-IF Certification Ensures Rigorous Testing and Top-of-the-Line Performance

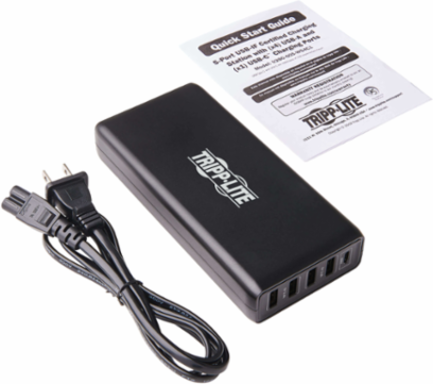

- Easy to Use with the Included Power Cord
Specifications
Features & Specifications
- Technology
- USB
Battery
- Battery Charging (1.2 Port)
- Yes
Certifications
- Certifications
- UL/cUL, FCC, USB-IF, RoHS, REACH
ApprovalsUL Listed, USB-IF
Connections
- Ports
- 5
- Side B - Connector 1
- USB C (FEMALE)
Side A - Connector 1NEMA 1-15P (NON-POLARIZED)
Side B - Connector 2(4) USB A (FEMALE)
Physical
- Color
- Black
- Unit Dimensions (hwd / in.)
- 6.3 x 3 x 1.1
- Unit Weight (lbs.)
- 0.8
Material of ConstructionPlastic
Unit Packaging TypeBox
Input
- Plug Type

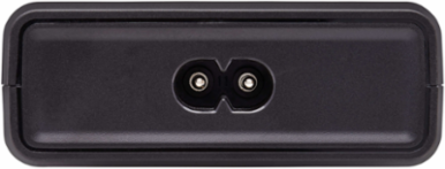

- C7 to NEMA 1-15P
- Input Frequency
- 50/60Hz
Voltage Compatibility (VAC)100; 110; 120; 125; 127; 200; 208; 220; 230; 240
Output
- Charging Ports / Amps
- (4) 2.4A; 3A / 4.3A
- Charging Method
- USB
Output CapacityUSB-A: 5V 4.8A (24W) total (5V 2.4A per port, 5V 2.4A (12W) simultaneous use per bank); USB-C: 5V 3A (15W), 9V 3A (27W), 12V 3A (36W), 15 3A (45W) and 20V 4.3A (86W); USB-A and USB-C total: 110W
Environmental
- Operating Temperature Range
- 32°F to 95°F / 0°C to 35°C
- BTUs
- 1.02
- Operating Humidity Range
- 5% to 95% RH, NON-CONDENSING
Storage Temperature Range-4°F to 185°F / -20°C to 85°C
Power Consumption (Watts)0.3 (No Load)
Storage Humidity Range20% to 90% RH, NON-CONDENSING
Overview
- UPC Code
- 037332241030
Over Current ProtectionY
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
