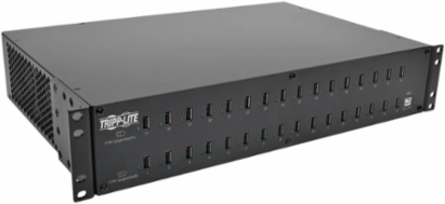

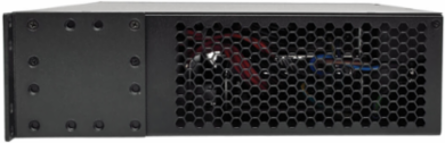

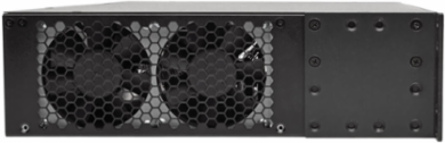

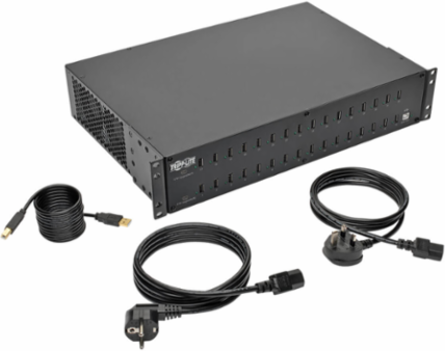

Tripp Lite U280-032-RMINT 32-Port USB Charging Station, 230V, 5V 80A, 2U Rack-Mount
Tripp Lite U280-032-RMINT 32-Port USB Charging Station, 230V, 5V 80A, 2U Rack-Mount
- MPN: U280-032-RMINT
- UPC: 037332193537
- PPN: TRP-U280-032-RMINT
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1386.11/ EA
Description

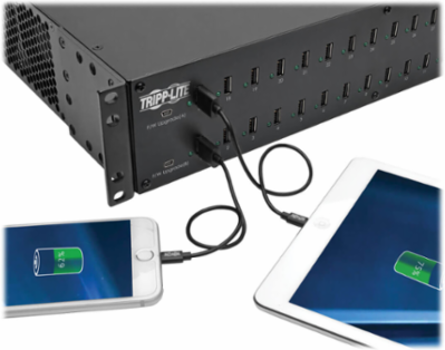

2U rack-mountable USB charger with integrated hub charges and syncs up to 32 tablets, smartphones and other mobile devices. Recommended for schools, offices and other environments where multiple USB devices are used.
Features
- Maximum charge output of 2.4A per USB port
- Supports USB 2.0 data transfer rates up to 480 Mbps
- Syncs any USB device using its compatible software
- Enables future software upgrades to support newer devices
- Mounts in 2U of EIA-standard 19 in. rack
- 2-year limited warranty
Specifications
Features & Specifications
- Driver Required
- No
TechnologyUSB; USB 2.0 (High Speed)
Certifications
- Certifications
- Tested to UL 60950-1: 2007, CAN/CSA-C22.2 No. 60950-1:07, IEC 60950, FCC & IEC Class B, NOM, RoHS, REACH
Connections
- Ports
- 32
- Side A - Connector 2
- USB B (FEMALE)
- Side B - Connector 1
- IEC-320-C14
Side A - Connector 1(32) USB A (FEMALE)
Side A - Connector 3(2) MICRO-USB B (FEMALE)
Physical
- Color
- Black
- Shipping Dimensions (hwd / in.)
- 7.90 x 16.90 x 19.80
- Unit Dimensions (hwd / in.)
- 3.4 x 17.3 x 11.9
- Unit Weight (lbs.)
- 13.1
Material of ConstructionSteel
Shipping Weight (lbs.)18.40
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- Green (32x USB Charging, 1x Sync)
Input
- Input Connection Type
- IEC320-C14
- Input Frequency
- 50/60Hz
Voltage Compatibility (VAC)230
Input Current5A
Output
- Charging Ports / Amps
- (32) 2.4A
- Charging Method
- USB
Output Capacity5V 80A (400W)
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 5% to 95% RH, Non-Condensing
- BTUs
- 382.2 BTU/Hr (Full load)
Storage Temperature Range5 to 122 F (-15 to 50 C)
AC Mode Efficiency Rating (100% Load)74.57
Power Consumption (Watts)112
Overview
- UPC Code
- 037332193537
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
