Schneider Electric NSYVDM17UF 19 Inch Fixed Chassis 17U, Galvanised Steel, 4.72 kg, 800 mm Height, 600 mm Width

  • MPN: NSYVDM17UF
  • PPN: SCH-NSYVDM17UF
  • UNSPSC: 39121323

CAD

$179.80

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The NSYVDM17UF 19 Inch Fixed Chassis from Schneider Electric is a robust and practical solution for mounting IT equipment securely within a range of environments. Constructed from galvanized steel, this 17U chassis is designed to provide durability while ensuring effective support for your data and communication needs. With a height of 800 mm and a width of 600 mm, it is ideal for optimizing space in server rooms and automation control centers. This fixed chassis integrates seamlessly into various applications, making it an essential component for any professional looking to enhance their infrastructure reliability and organization.

Features

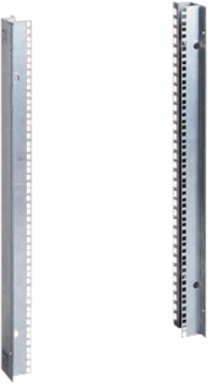

  • 19" fixed chassis composed by 2 19" uprights with fixing hardware.
  • Thickness: 20/10e mm.
  • Material: Galvanized steel
  • Maximum load: 3 kg per unit

Documentation & Downloads

Specifications

Key Specifications

Country of OriginSpain
Depth830 mm
Weight4724 g

Physical Attributes

ColorGray RAL 7035)

Important Information Attributes

Persona Type IdsLC, OM, OM8, PB, SI
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Device Applicationmulti-purpose, electronic application
Mounting Locationfront of enclosure, step slide
Carbon Footprint Of The End Of Life Phase C1 To C411 kg CO2 eq., 11.129055012925809
Carbon Footprint Of The Manufacturing Phase A1 To A323 kg CO2 eq., 23.065388503396566
Local Data StatusPublishable
Return IndicatorN
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Compositionfixing elements2 19" uprights
Fixing Modeby fixing element
Permanent Permissible Load3 kg per unit
Product Or Component Type19" rack
RangePanelSeT
Software Versionv6.1
Thickness2 mm
Database Version2023-02
Height Nominalnominal: 800 mm
Accessory / Separate Part Categorymounting accessory
Number Of Units 19"17
Customs Code9403999045
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit UnitUnit
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 800 mm W: 600 mm D: 200 mm, - H: 800 mm W: 600 mm D: 200 mm, - H: 800 mm W: 600 mm D: 200 mm, - H: 800 mm W: 600 mm D: 200 mm, - H: 800 mm W: 600 mm D: 250 mm, - H: 800 mm W: 600 mm D: 250 mm, - H: 800 mm W: 600 mm D: 250 mm, - H: 800 mm W: 600 mm D: 250 mm, - H: 800 mm W: 600 mm D: 300 mm, - H: 800 mm W: 600 mm D: 300 mm, - H: 800 mm W: 600 mm D: 300 mm, - H: 800 mm W: 600 mm D: 300 mm, - H: 800 mm W: 600 mm D: 400 mm, - H: 800 mm W: 600 mm D: 400 mm, - H: 800 mm W: 600 mm D: 400 mm, - H: 800 mm W: 600 mm D: 400 mm, - H: 800 mm W: 600 mm D: 200 mm, - H: 800 mm W: 600 mm D: 200 mm, - H: 800 mm W: 600 mm D: 200 mm, - H: 800 mm W: 600 mm D: 200 mm, - H: 800 mm W: 600 mm D: 250 mm, - H: 800 mm W: 600 mm D: 300 mm, - H: 800 mm W: 600 mm D: 400 mm
Carbon Footprint Of The Distribution Phase A49.378664357389729, 9 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.9307085198424014, 0.9 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6kg CO2 eq., 0
Local Publishable Date2026-04-15
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentadjustable in depth, pitch 12.5 mm, on the step slide
Energy Efficiency OptimizedFalse
Materialgalvanised steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Rack Typefixed
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint45 kg CO2 eq.
Data Sourceextrapolated product
Width Nominalnominal: 600 mm
Enclosure/Cubicle Descriptionwall-mounted enclosure
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y20

Environment Attributes Main

China Rohs RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint44.50381639355451
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-08-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1001004EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Type19" rack

ETIM

ETIM 8EC002620
ETIM 10EC002620
ETIM 9EC002620

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months
19 Inch Fixed Chassis 17U, Galvanised Steel, 4.72 kg, 800 mm Height, 600 mm Width
