Schneider Electric NSYBRF26PLAG 19 Inch Fixed Chassis 26U, H1500xW750mm, 2mm Steel, 3kg Load
Schneider Electric NSYBRF26PLAG 19 Inch Fixed Chassis 26U, H1500xW750mm, 2mm Steel, 3kg Load
- MPN: NSYBRF26PLAG
- PPN: SCH-NSYBRF26PLAG
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$176.91/ EA
Description

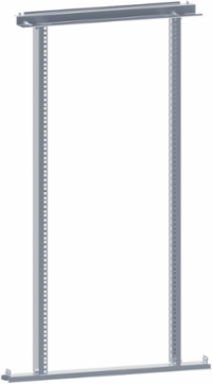

Designed for versatility and durability, this 19" fixed chassis is an essential component for any Thalassa PLA or PHD enclosure setup. With a robust construction of 2 mm thick sheet steel and a sleek gray finish (RAL 7035), it not only ensures structural integrity but also seamlessly integrates into various environments. The chassis features a front mounting location and includes fixing elements along with two 19" uprights, making it easy to install and secure your devices. Additionally, it is designed to support a permanent permissible load of 3 kg per unit, catering to a wide range of multi-purpose applications.
Features
- Very sturdy 19" metal chassis, designed for installation in enclosures with a width of 750 and 1250 mm.
- These chassis can be used as partial mounting plates in enclosures with a height greater than the nominal height.
- Incompatible with the internal doors and the step slides.
- Fixed chassis made up of two uprights with fixings
- Material: Galvanized steel
- Finish: Epoxy polyester paint
- Color: RAL 7035 grey
- Maximum load: 3 kg per unit
- In enclosures with a width of 1250 mm, the chassis is installed in the 750-mm part with an intermediate support
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 19" uprights
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Lock Type
- lock 5 mm double bar
- Mounting Location
- front of enclosure
- Permanent Permissible Load
- 3 kg per unit
- Product Or Component Type
- 19" rack
- Rack Type
- fixed
- Returnability
- No
- Sustainable Packaging
- No
- Accessory Separate Part Category2
- mounting accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP1109021EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2025-09-16
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Fixing Modeby fixing element
Materialsheet steel
Package Weight Lbs5.966 kg
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
RangePanelSeT
Surface Finishepoxy-polyester powder
Thickness2 mm
Medium Desc19" fixed chassis 26U forPLA enclosure H1500xW750mm
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Environmental Disclosure
- ENVPEP1109021EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109021EN
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- 19" rack
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 59.06 in
