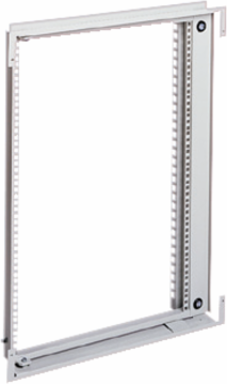

Schneider Electric NSYVDM25U8P 19 Inch Swing Chassis Rack 25U H: 1200 mm W: 800 mm D: 300 mm

MPN: NSYVDM25U8P
PPN: SCH-NSYVDM25U8P
UNSPSC: 39121323

$460.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric 19 Inch Swing Chassis Rack is a robust solution designed for optimal organization and accessibility of your critical IT infrastructure. Standing at 25U with dimensions that suit a variety of setups, this rack is engineered to allow easy access to equipment and cabling, enhancing the efficiency of your data and communication systems. Crafted for durability and versatility, it fits seamlessly into any automation and control environment, making it an essential component for modern IT enclosures and racks.

Features

19" swing chassis opening to 120° with locking system by 3-mm double-bar insert.
Material: Steel
Finish: Epoxy polyester powder
Color: RAL 7035 grey
Maximum load: 3 kg per unit

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain
Depth	140 mm

Weight	12760 g

Physical Attributes

Color	Gray RAL 7035)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Application	multi-purpose, electronic application
Carbon Footprint Of The Distribution Phase A4	25.33271744290706, 25 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	2.513937492207672, 3 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-04-15
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Composition	fixing elements1 19" swing chassis2 lock
Fixing Mode	by fixing element
Material	chassis steel
Permanent Permissible Load	3 kg per unit
Product Or Component Type	19" rack
Range	PanelSeT
Software Version	v6.1
Sustainable Packaging	No
Database Version	2023-02
Height Nominal	nominal: 1200 mm
Accessory / Separate Part Category	mounting accessory
Opening Of The 19" Racks	reversible 120 °
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Enclosure Nominal Dimensions	- H: 1200 mm W: 800 mm D: 300 mm, - H: 1200 mm W: 800 mm D: 300 mm, - H: 1200 mm W: 800 mm D: 300 mm, - H: 1200 mm W: 800 mm D: 300 mm, - H: 1200 mm W: 800 mm D: 400 mm, - H: 1200 mm W: 800 mm D: 400 mm, - H: 1200 mm W: 800 mm D: 400 mm, - H: 1200 mm W: 800 mm D: 400 mm, - H: 1200 mm W: 800 mm D: 300 mm, - H: 1200 mm W: 800 mm D: 300 mm, - H: 1200 mm W: 800 mm D: 300 mm, - H: 1200 mm W: 800 mm D: 300 mm, - H: 1200 mm W: 800 mm D: 400 mm
Carbon Footprint Of The End Of Life Phase C1 To C4	30 kg CO2 eq., 30.06069897648885
Carbon Footprint Of The Manufacturing Phase A1 To A3	62 kg CO2 eq., 62.301938463873874
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Lock Type	lock with 3 mm double bar insert
Mounting Location	front of enclosure
Product Availability	Non-Stock - Not normally stocked in distribution facility
Rack Type	swing
Returnability	No
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	120 kg CO2 eq.
Data Source	extrapolated product
Width Nominal	nominal: 800 mm
Enclosure/Cubicle Description	wall-mounted enclosure
Number Of Units 19"	25
Customs Code	9403999045
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	120.20929237547746
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-08-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1001004EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1001004EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
