Schneider Electric NSYBRF8PLAG 19 Inch Fixed Chassis 8U Enclosure H500mm, 3 kg Load Capacity
Schneider Electric NSYBRF8PLAG 19 Inch Fixed Chassis 8U Enclosure H500mm, 3 kg Load Capacity
- MPN: NSYBRF8PLAG
- PPN: SCH-NSYBRF8PLAG
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$157.18/ EA
Description
Designed for versatility and durability, this 19-inch fixed chassis is an ideal solution for various multi-purpose applications. With a robust construction featuring 2 mm thick sheet steel and a sleek gray epoxy-polyester powder finish, it not only provides a reliable mounting solution but also enhances the aesthetic of any environment. Capable of supporting a permanent load of up to 3 kg per unit, this enclosure is part of the Thalassa range, ensuring compatibility with a variety of devices. Measuring 500 mm in height and equipped with 8 units, it offers ample space for your equipment while maintaining a secure setup thanks to its double bar lock mechanism.
Features
- Very sturdy 19" metal chassis, designed for installation in enclosures with a width of 750 and 1250 mm.
- These chassis can be used as partial mounting plates in enclosures with a height greater than the nominal height.
- Incompatible with the internal doors and the step slides.

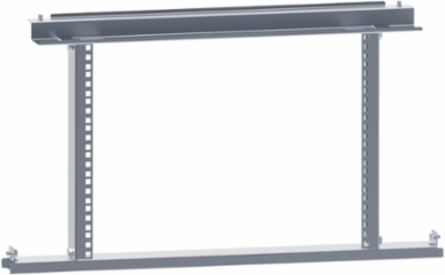

- Fixed chassis made up of two uprights with fixings
- Material: Galvanized steel
- Finish: Epoxy polyester paint
- Color: RAL 7035 grey
- Maximum load: 3 kg per unit
- In enclosures with a width of 1250 mm, the chassis is installed in the 750-mm part with an intermediate support
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 19" uprights
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Fixing Mode
- by fixing element
- Material
- sheet steel
- Package Weight Lbs
- 3.512 kg
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Thickness
- 2 mm
- Medium Desc
- 19" fixed chassis 8U forPLA enclosure H500xW750mm
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2025-09-16
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Energy Efficiency OptimizedFalse
Lock Typelock 5 mm double bar
Mounting Locationfront of enclosure
Permanent Permissible Load3 kg per unit
Product Or Component Type19" rack
Rack Typefixed
ReturnabilityNo
Sustainable PackagingNo
Accessory Separate Part Category2mounting accessory
Stocking FlagY
Pep CodeENVPEP1109021EN
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Environmental Disclosure
- ENVPEP1109021EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109021EN
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- 19" rack
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 19.69 in
