Schneider Electric NSYVDM12UF 19 Inch Fixed Chassis 12U Rack, Galvanised Steel, 4.36 kg

MPN: NSYVDM12UF
PPN: SCH-NSYVDM12UF
UNSPSC: 39121323

$158.49

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This 19-inch fixed chassis rack from Schneider Electric is expertly crafted from galvanized steel, offering a robust and durable solution for a variety of automation, control, and communication applications. Designed to accommodate 12U of equipment, it provides an organized space for housing critical IT components while ensuring efficient airflow and accessibility. Weighing in at just 4.36 kg, this rack combines strength with a manageable structure, making it an ideal choice for those looking to optimize their data management environments. Whether for industrial applications or data centers, this chassis stands out for its reliability and functionality.

Features

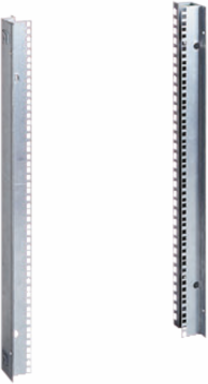

19" fixed chassis composed by 2 19" uprights with fixing hardware.
Thickness: 20/10e mm.
Material: Galvanized steel
Maximum load: 3 kg per unit

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain
Depth	700 mm

Weight	3370 g

Physical Attributes

Color	Gray RAL 7035)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Application	electronic application, multi-purpose
Mounting Location	step slide, front of enclosure
Carbon Footprint Of The End Of Life Phase C1 To C4	8 kg CO2 eq., 7.9392284914394535
Carbon Footprint Of The Manufacturing Phase A1 To A3	16 kg CO2 eq., 16.454352086461988
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Composition	fixing elements2 19" uprights
Fixing Mode	by fixing element
Permanent Permissible Load	3 kg per unit
Product Or Component Type	19" rack
Range	PanelSeT
Software Version	v6.1
Thickness	2 mm
Database Version	2023-02
Height Nominal	nominal: 600 mm
Accessory / Separate Part Category	mounting accessory
Number Of Units 19"	12
Customs Code	9403999045
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Enclosure Nominal Dimensions	- H: 600 mm W: 600 mm D: 200 mm, - H: 600 mm W: 600 mm D: 200 mm, - H: 600 mm W: 600 mm D: 200 mm, - H: 600 mm W: 600 mm D: 200 mm, - H: 600 mm W: 600 mm D: 250 mm, - H: 600 mm W: 600 mm D: 250 mm, - H: 600 mm W: 600 mm D: 250 mm, - H: 600 mm W: 600 mm D: 250 mm, - H: 600 mm W: 600 mm D: 300 mm, - H: 600 mm W: 600 mm D: 300 mm, - H: 600 mm W: 600 mm D: 300 mm, - H: 600 mm W: 600 mm D: 300 mm, - H: 600 mm W: 600 mm D: 400 mm, - H: 600 mm W: 600 mm D: 400 mm, - H: 600 mm W: 600 mm D: 400 mm, - H: 600 mm W: 600 mm D: 400 mm, - H: 600 mm W: 600 mm D: 200 mm, - H: 600 mm W: 600 mm D: 200 mm, - H: 600 mm W: 600 mm D: 200 mm, - H: 600 mm W: 600 mm D: 200 mm, - H: 600 mm W: 600 mm D: 250 mm, - H: 600 mm W: 600 mm D: 300 mm, - H: 600 mm W: 600 mm D: 400 mm
Carbon Footprint Of The Distribution Phase A4	6.6905374437771785, 7 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.663947441123813, 0.7 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-04-15
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Adjustment	adjustable in depth, pitch 12.5 mm, on the step slide
Energy Efficiency Optimized	False
Material	galvanised steel
Product Availability	Non-Stock - Not normally stocked in distribution facility
Rack Type	fixed
Returnability	No
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	32 kg CO2 eq.
Data Source	extrapolated product
Width Nominal	nominal: 600 mm
Enclosure/Cubicle Description	wall-mounted enclosure
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	31.748065462802433
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-08-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1001004EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1001004EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
